XPath Injection Attack

XPath Injection Attack

Introduction

The utilization of XML for information capacity is turning out to be more well known. In this article, we are going to learn all about XPath injection attack, XPath injection prevention, see XPath injection cheat sheet samples, and also learn what blind XPath injection is.

Learning Objectives

XPath definition

XML information can be questioned utilizing XPath, which is reasonably like SQL. It's likewise a question language for observing explicit components in an XML report. Not at all like SQL, which permits limitations on data sets, tables, and segments, there are no entrance level authorizations and practically any piece of an XML report can be alluded to.

What is XPath injection attack?

XPath infusion is a sort of assault where a pernicious information can give unapproved admittance to or uncover delicate data, for example, an XML record's construction and content. It happens when the inquiry string is developed utilizing the client's feedback. The attributes of the SQL vernacular utilized by the objective data set limit the quantity of methods that can be utilized in a SQL Injection assault, while XPath infusion assaults are significantly more versatile and far reaching.

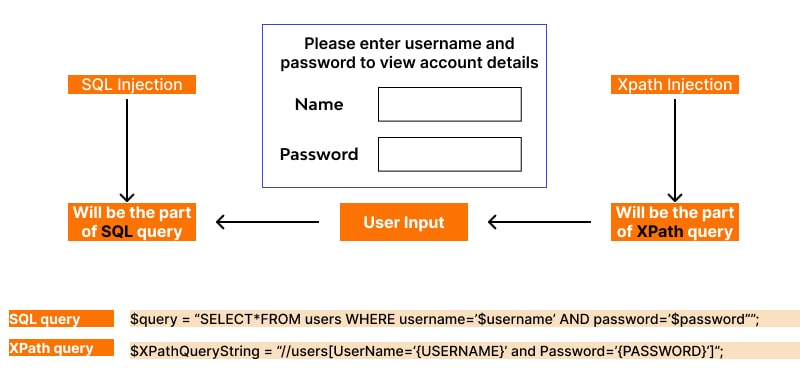

Comparing Xpath with SQL
Comparing Xpath with SQL

An example of an attack scenario

Consider the situation beneath:

Clients' accreditations and other data are put away on a site utilizing XML. Coming up next is the XML archive:

<?xml version="1.0" encoding="utf-8"?>
<Employees>
<Representative ID="1">
<Name>Sam</Name>
<UserName>Johns</UserName>
<Password>This is Secret</Password>
</Employee> <Representative ID="2">
<Name>Peter</Name>
<UserName>Pan</UserName>
<Password>Ssssshh</Password>
</Employee>
</Employees>

The client enters their username and secret phrase to get to the site. Subsequently, the accompanying XPath question would be produced for questioning the information:

"//Employee[UserName/text()='" and Request("UserName") and "' And Password/text()='" and Request("Password") and "']"

The accompanying XPath question would be created on the off chance that we involved a malignant payload as the client name:

Username : test' or 1=1 or 'a'='a
Secret word : test
XPath Query://Employee[UserName/text()='test' or 1=1 or 'a'='a' And Password/text()='test']

This is identical to:

//Employee[(UserName/text()='test' or 1=1) or ('a'='a' And Password/text()='test')]

Thus, just the initial segment of the inquiry is right, and the subsequent part is overlooked. The assailant currently has unhindered admittance to the site on the grounds that the secret word is as of now not applicable.

Boolenization and XMLCrawling, otherwise called Blind XPath Injection, can be utilized to recover the whole XML report notwithstanding the model above. The server returns True on the off chance that the aggressor effectively signs into the site; False assuming the assailant neglects to sign in. Utilizing different XPath sub capacities to recognize the information in the XML record, the quantity of hubs not set in stone. The following are a couple of sub-work models:

This capacity returns the quantity of hubs:

count(//client/child::node()

Checks assuming the secret word hub has 6 characters

string-length(//user[position()=1]/child::node()[position()=3])=6

Blind XPath Injection

  • Boolenization

The assailant can utilize the "Boolenization" technique to decide if the given XPath articulation is True or False. Accept that the's aggressor will probably get sufficiently close to a web application account. A fruitful sign in endeavor returns "Valid," while a bombed sign in endeavor returns "Bogus." The broke down character or number is simply used to focus on a little part of the information. Whenever an aggressor centers around a string, they can uncover it completely by really taking a look at each person in the class/scope of characters to which the string has a place.

Code:

<?xml version="1.0" encoding="UTF-8"?>
<data>
<user>
login>admin</login>
<password>test/password>
<realname>SuperUser</realname>
</user>
<user>
<login>rezos</login>
<password>rezos123</password>
<realname>Simple User</realname>
</user>
</data>
  • XML Crawling

The assailant could utilize the accompanying strategies to find out about the XML record structure:

count(expression)
count(//client/child::node()

This will return the quantity of hubs (for this situation 2).

stringlength(string)
string-length(//user[position()=1]/child::node()[position()=2])=6

Utilizing this question the aggressor will see whether the subsequent string (secret word) of the primary hub (client 'administrator') comprises of 6 characters.

substring(string, number, number)
substring((//user[position()=1]/child::node()[position()=2]),1,1)="a"

This question will affirm (True) or deny (False) that the principal character of the client ('administrator') secret phrase is an "a" character.

This is what the login structure would resemble:

C#:

String FindUser;
FindUser = "//user[login/text()='" + Request("Username") + "' And
secret key/text()='" + Request("Password") + "']";

then the aggressor ought to infuse the accompanying code:

Username: ' or substring((//user[position()=1]/child::node()[position()=2]),1,1)="a" or ''='

Albeit the XPath punctuation looks like that of normal SQL Injection assaults, the assailant should remember that this language doesn't permit remarking out the rest of the articulation. To get around this limitation, the aggressor should utilize OR articulations to void all articulations, which might make the assault be disturbed.

The quantity of questions created by Boolenization can be extremely high, even inside a little XML archive (thousands, many thousands and the sky is the limit from there). Therefore, this assault isn't done physically. With only a couple of fundamental XPath capacities, the aggressor can rapidly compose an application that will remake the report's construction and consequently fill it with information.

Mitigating and preventing an attack

Xpath injection mitigation ought to be forced in the application designer code area by separating the passages so that characters entered in fields where the client permits information section don't comprise a Xpath inquiry.

Some security against future zero-day assaults is given by sifting through characters that are probably going to be placed instead of characters that the client shouldn't need to enter.

The names of Xpath capacities ought to be completely obstructed as contribution also. Impediments ought to be set on the client side with programming, and they ought to be controlled on the server side with firewall rules and measures.

It is recommended that defined inquiries be utilized. Rather than utilizing client inputs straightforwardly at run time, a defined question order them early. This keeps code from being executed during runtime.

Quote (') and other client input should be cleaned, yet "and apos;" can be utilized all things considered. Approval is expected on both the client and the server sides.

Defined questions (like SQL's Prepared Expressions) precompile inquiries and pass client input as boundaries instead of explanations.

In case of a blunder, proper mistake pages ought to be utilized that uncover no data to the assailant.

Your group ought to guarantee that they are not impacted by XPATH infusion while creating programming. As a feature of your protected code improvement process, compose test scripts for XPATH infusion.

An assessor will audit your approaches and techniques for application advancement and interview dependable faculty to guarantee consistence with PCI DSS Requirement 6.5.1 and security from infusion mistakes.
