Access Control List (ACL)

In the present associated world your servers are an enticing objective for programmers. Firewalls and security programming are a decent beginning, however not a total security arrangement. Think about that most of your customers, representatives, and merchants access your organization utilizing a wide assortment of gadgets. These gadgets utilize distinctive correspondence conventions, information rates, and specialist co-ops. Sadly, a fundamental firewall isn't sufficiently strong to offer great execution across every one of these gadgets simultaneously.

In the PC organizing world, an ACL is perhaps the most essential segments of safety. An Access Control Lists "upper ACL" is a capacity that watches internal and outward exchange and contrasts it and a bunch of characterized articulations.

In this article, we will dive deep into the usefulness of ACLs, and answer the most widely recognized inquiries concerning access control records.

Access Control List (ACL)

Access Control List Definition

An access control list is a system of regulations that determines which clients or hosts can use your service. In a few words, ACL is the list that allows you to say who can communicate with what. So in the case of this problem, we have an email address. We might have a host. We might have a port. And we might have a protocol type. And then we say OK. So these people can communicate with this. And we say nobody else can. So that's the access control list.

If you are a bad guy, and you are trying to figure out a way to send an email and have it look like it came from someone else, you are going to have to be able to have some kind of a list that's going to allow you to do that.

And so this is why you are going through this. So you have to know how the mail server works. So we have these mail servers. One of the most common ones is called Sendmail. And if you look at Sendmail, it has something like 250 different configuration files.

And that's not a joke. So you have to know which ones to use for what purpose. But once you have it set up, it's a fairly simple thing. And so what you can do is you can have a little script. You can say, "Let me look at this mail. Let me take this mail, and let me send it to the right folder." So you might say, "I'm going to have this folder for user A, user B, and user C. And I'm going to have this other folder for user D, user E, and user F." And I'm going to have a script that says, "You know what? Let me take this email. I'm going to hand it on to the user A file folder.

Access Control Lists (ACLs) are traffic light records for web channels that may oversee traffic info and surge. ACLs control a bunch of choices that decide if a bundle ought to be progressed or hindered at the switch's interface.

In the same way that a Stateless Firewall restricts, impedes, or authorizes the passage of bundles from source to destination, an ACL does the same.

When you specify an ACL on a directing device for a given interface, every traffic passing through will be distinguished, and the ACL explanation will either hamper or license it.

The source, the level-headed, a specific show, or other material might be used as models for displaying the ACL rules.

Access control records are commonly found in switches and firewalls, but they may also be found in any device that operates in the association, including routers, network devices, and employees.

ACLs on filesystems control access to documents and maybe indexes. Working frameworks use filesystem ACLs to determine which clients have access to the framework and what privileges they have. Access control records are used to monitor who has access to the documents and indexes (ACLs). It ensures that only pre-approved clients have access to catalogs and records.

Administration of computer systems ACLs are used to control who gets into the organization. Administration of computer systems ACLs instruct switches and switches what kind of traffic and movement is allowed inside the organization.

Originally, the best technique to get firewall insurance was to use ACLs. In contrast to ACLs, there are many different types of firewalls and alternatives available today. Nonetheless, enterprises continue to use ACLs associated with technologies such as virtual private networks (VPNs), which specify which traffic should be encoded and routed through a VPN tunnel.

Benefits of Access Control List

  • The described set of rules is coordinated with sequential sequencing, i.e. coordinating with begins with the main line, second, third, and so on.
  • The bundles are carefully coordinated until they match the standard. When a standard is coordinated with, no additional correlation occurs, and the standard is carried out.
  • At the end of each ACL, there is an implicit deny, i.e., if no condition or rule coordinates are present, the parcel will be discarded.
  • ACLs are long and complex, and there is little information available to assist determine why specific ACLs were introduced or updated.
  • ACL modifications aren't always monitored or regulated, resulting in a lack of communication and knowledge with ACL modifications across key groups.
  • As the size and complexity of the ACL grows, the risks of personal time and blackouts grow significantly.
  • hen it comes to ACL modifications, there is a lack of accountability. In many organizations, it's nearly impossible to attribute ACL modifications to single designers with any regularity.

Why you should utilize ACLs

  • A level of security for network access stating which areas of the worker/organization/administration may and cannot be accessed by a client:

The guideline considered while utilizing an ACL is to provide security to your organization. Without it, any traffic can enter or exit, rendering it impotent against unwanted and harmful traffic.

An ACL can be used to strengthen security by, for example, denying explicitly coordinated modifications or granting traffic stream control.

  • Granular monitoring of traffic exiting and entering the framework:

An ACL allows you to channel groups for a single or social event of IP addresses or various shows, such as TCP or UDP.

As an example, rather than upsetting just one host in the planning group, you may reject permission to the entire group and only permit one. Alternatively, you can limit the authorization to have C in the same way.

  • Limited network traffic for better organization execution:

For example, if an Engineer from Have C has to connect to a web worker in the Financial organization, you can merely allow port 80 and ignore the rest.

How does the ACL Works?

A filesystem is an arrangement of files. ACL is a table that informs a PC's operating system of a client's access privileges to a framework object, such as a single record or a document registry. Each item has a security attribute that links it to the entry control list it belongs to. Each client with access privileges to the scenario gets a section in the rundown.

The ability to read a single document (or all of the records) in a register, execute the record, or communicate with the record or records are all common advantages. Microsoft Windows NT/2000, Novell's Netware, Digital's OpenVMS, and UNIX-based frameworks are examples of working frameworks that use an ACL.

When a client requests an article in an ACL-based security model, the functioning framework examines the ACL for a key part to check if the requested action is permitted.

Administration of computer systems ACLs are introduced in switches or switches and function as traffic conduits. Every frameworks organization's ACL has policies in place that govern whether bundles or coordinated updates are accepted or denied within the organization.

ACL-enabled switches function similarly to bundle channels, transferring or refusing bundles based on separation principles. A bundle isolating switch is a Layer 3 device that uses rules to determine whether communication should be allowed or not. It makes this decision based on the bundle's positioning strategy, source and target IP addresses, target and source ports, and authority procedure.

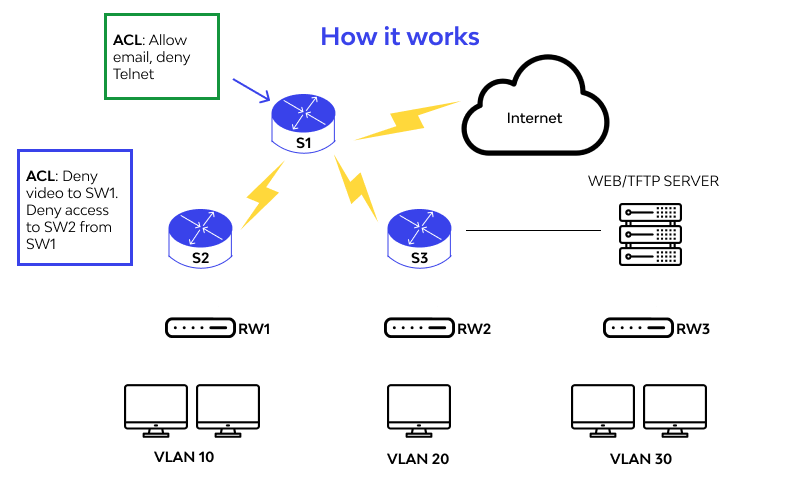

the ACL works

The Varieties of Access Control Lists

  1. Standard ACLs

Standard ACLs are the most outstanding, going right back to Cisco's IOS Software's starting point (Release 8.3). Standard ACLs, unlike broadened ACLs, are confined to limiting traffic subject to the source IP address data rather than the source and target IP address data.

Exactly when a pack endeavors to enter or leave a switch, its IP data is checked against each standard in an ACL, as you taught already. The bundle is either embraced or denied reliant upon whether it lines up with a standard.

You might be thinking about what the pack is permitted or blocked to accomplish right now. This is dependent upon whether you use the ACL in an inbound or outbound course.

The ACL will apply to inbound bundles that have appeared at the interface and are attempting to enter the switch. This is especially legitimate for traffic that begins the web and goes through your internal association. The ACL applies to bunches that have gone through the switch and are attempting to leave it if the interface is outbound.

This is true, for example, when traffic leaves your inside association and heads straight towards the internet.

  1. Extended ACLs

Using Extended Access Control Lists, you may allow or bind traffic from shown IP addresses to a certain IP address and port (ACLs). It furthermore allows you to perceive different sorts of correspondence, as ICMP, TCP, and UDP. It is obviously granular and licenses you to stand out.

While there are times when we simply need to channel traffic reliant upon the source address, we ought to normally organize traffic with more vital precision. For more exact traffic separation control, a thorough IP access overview could be utilized. This section breaks down both the source and target regions. Furthermore, you can demonstrate the norm and limitless TCP or UDP port number to channel even more precisely.

If you need to assemble a bundle sifting firewall to get your affiliation, you ought to use an Extended ACL.

What makes the Extended ACL different from the standard ACL?

  • The persons on the admittance list

This is another another number that fits within the scope of the passageway list that is already in place. The 190 demonstrates that it is a comprehensive transparency list for the current situation.

  • The protocol

This allows us to use different channels depending on the show, such as IP for IP address isolation or TCP for show filtering.

  • The area to be targeted

This is the IP address range that a certain bundle is attempting to reach.

  • The trump card of the destination

This is utilized as a source-exceptional situation to identify the IP address of the host or a large number of middle-person employees attempting to be contacted. This eliminates the requirement for lines for each IP address inside a certain subnet.

  • The operator

Similar to TCP or UDP, this may be used to display a port number when filtering by show. This component has four options for you to choose from;

  • eq Equals—when we know precisely what port should be checked
  • gt Greater than—permits us to determine a specific reach over a specific port number
  • It Less than—permits the indication of a specific reach lower than a specific port number
  • neq Not equivalent—permits the affirmation of the entrance rundown to everything except on port
  1. Dynamic ACLs

Dynamic ACLs tackle an alternate issue that likewise can't be handily addressed utilizing customary ACLs. Envision a bunch of servers that should be gotten to by a little arrangement of clients. With ACLs, you can coordinate with the IP locations of the hosts utilized by the clients. Notwithstanding, if the client gets another PC, or leases another location utilizing DHCP, or takes her PC home, etc, the authentic client currently has an alternate IP address. So a conventional ACL would need to be altered to help each new IP address. Excruciating organization and security openings existed along these lines.

Dynamic ACLs, commonly referred to as Lock-and-Key Security, solve this problem by tying the ACL to a client verification check. Clients should be directed to telnet to a switch first, rather than attempting to connect with the server. A username/secret phrase combination is required by the switch. If the validation packages are authentic, the switch gradually modifies its ACL to accept traffic from the IP address of the server that just sent them. After a period of inertia, the switch disables the ACL's unique section, thereby closing the security hole.

  1. Reflexive ACLs

An access list, of course, does not keep track of the sessions. A short list of admit and deny decisions that are reviewed from beginning to end makes up an entrance list. If any of the criteria are met, that condition is carried out, and no additional condition is created.

For a little office, a reflexive Access-list fills in as a stateful firewall, allowing simply traffic that starts from inside the association while deterring traffic from an outer viewpoint.

The Reflexive Access-list is a section list that simply allows the responses to the stacks of social occasions that have been begun inside the relationship (from the external affiliation).

At the point when a meeting is started inside the organization and going external the organization through switch (working reflexive Access-list), reflexive Access-list are set off. Hence, it makes a brief section for the traffic which is started inside the organization and permits just those traffic from the external organization which is a piece of the meeting (traffic produced inside the organization). At the point when the meeting is finished, this brief segment is taken out.

Some of the characteristics of Reflexive access-list includes;

  • Reflexive Access-list should be nested inside the named Extended Access-list.
  • It cannot be applied directly to an interface.
  • A temporary entry is generated when a session begins and automatically destroyed when session ends.
  • It does not have implicit deny at the end of Access-list.
  • Just like normal access-list, if one the condition matches then no more entries are evaluated.
  • Reflexive Access-list cannot be defined with numbered Access-list
  • Reflexive Access-list cannot be defined with named or numbered standard Access-list.

Among the advantages of reflexive Access-list are:

  • Easy to implement.
  • Provides greater control over the traffic coming from the outside network.
  • Provides security from certain Dos attacks and spoofing.

Where to place the ACL?

Before you plan an ACL on a switch interface, you must first comprehend the situation and grasp the traffic stream. Understanding the role and effects of ACLs is a common request in CCNA and CCNP exams, and faults in ACL game planning are unquestionably the most common error network chiefs make during security implementation. Trust us, it happens to us all of us we are undependable to that one.

IT professionals and security experts should think about this carefully. In their game plan, upper ACLs start with a source address and then move on to a target address. When planning an ACL for an association interface's passageway, keep in mind that any nearby associations or hosts should be considered sources, and the same is true for the flight interface.

The most perplexing aspect of this is the execution of ACLs on the interface of a switch that is not controlled by an external entity. The section side originates from the outside association, and those conveyances are regarded as sources, whilst all addresses within the association are regarded as complaints. Your inside association addresses are presently source addresses on the outbound side while the external locations are currently target areas.

Broadened ACL and Standard ACL both should be set where it for the most part influences usefulness. Improper execution causes network moderate and inefficient simultaneously, real execution of an ACL can make the association more compelling because of diminishing pointless traffic from the association.

As you add ports in expanded ACLs, disorder can mount. The best guidance we have before any execution is to chronicle your streams and note your source/target areas. We will cover a more prominent measure of these executions later in future articles.

What is the source of internet traffic that you want to block?

Remember that your switch's interface gets traffic from the external organization. So the source is either an Internet IP address (a web worker public IP address) or everything (trump card veil of, with an inward IP address as the objective.

Imagine a scenario in which, then again, you needed to keep a specific host from associating with the Internet.

The approaching traffic is showing up from your interior organization and streaming out to the Internet through your switch interface. So the source is the inward host's IP address, and the objective is the Internet's IP area.

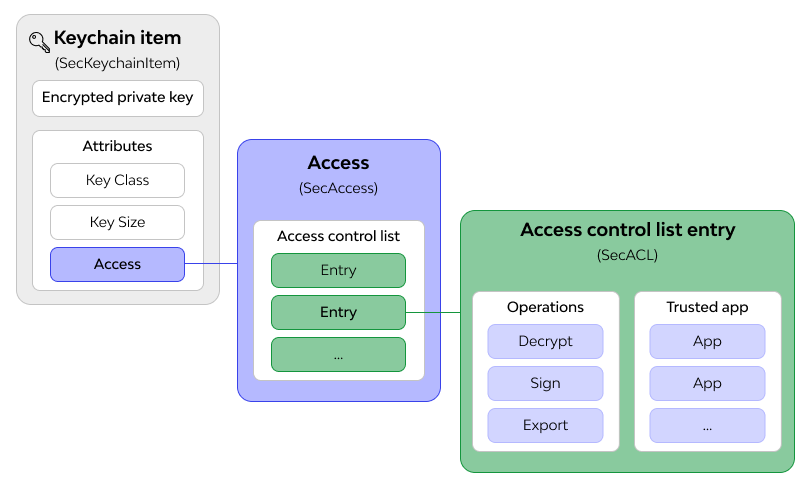

example ACL

ACL for logging

Access Control Lists are also very efficient at logging all traffic going into, or out of, an interface on a firewall. The traffic is logged in a structured manner, and the logging can be replicated in real time to a central logging host for retention.

The list of actions that are logged is configurable, but the most commonly logged actions are:

INPUT - traffic that is going into the firewall, e.g. from the outside

OUTPUT - traffic that is going out of the firewall, e.g. to the inside network

FORWARD - traffic that is going between the firewall and other devices, e.g. another firewall

TRAFFIC - all traffic that is going through the interface

When the ACL logging feature is configured, the system monitors ACL flows and logs dropped packets and statistics for each flow that matches the deny conditions of the ACL entry.

Statistics and dropped-packet logs are generated for each flow. A flow is defined by the source interface, protocol, source IP address, source port, destination IP address, and destination port values. The statistics maintained for a matching flow is the number of denies of the flow by the ACL entry during the specified time interval.

When a new flow is denied (that is a flow that is not already active in the system), the system generates an initial Syslog message with a hit count value of 1. Then each time the flow is denied, the system creates a flow entry and increments the hit count value.

When an existing flow is denied, the system generates a Syslog message at the end of each interval to report the hit count value for the flow in the current interval. After the Syslog message is generated, the hit count value for the flow is reset to zero for the next interval. If no hit is recorded during the interval, the flow is deleted and no Syslog message is generated.

ACL controls inside

One condition (allow or refuse explanation) at a time, the product compares each package's source, objective location, or convention to the conditions in the entrance display.

If a package does not match an entry list articulation, the next assertion in the list is checked.

If a package and an entry list proclamation match, the remainder of the assertions in the list are skipped, and the parcel is allowed or refused according to the coordinated with articulation. The main part to which the package corresponds determines whether the product accepts or rejects the package. That is, no subsequent portions are considered after the primary match.

The product returns an Internet Control Message Protocol (ICMP) Host Unreachable message and discards the package if the entrance list rejects the location or convention. As a result, it was found to be false when put to the test against every claim.

The package is dropped if none of the prerequisites are met. This is because each admissions list concludes with an unwritten or inferred denial explanation. That is, the package is rejected if it was not authorized after being tested against all assertions.

The request for the conditions is straightforward because the product stops testing conditions after the first match. A similar allow or deny proclamation determined in another request may result in a package being passed in one situation and denied in another.

All parcels pass if an entrance list is referred to by name in an order but the entrance list does not exist. For any interface, convention, and bearing, there can only be one access list.

Packages that arrive at the device are tracked using inbound access records. Approaching shipments are screened before being forwarded to an outward interface. If the package is to be deleted because the sifting tests have rejected it, an inbound access list is desirable since it saves the overhead of steering enquiries. The package is ready for steering if the tests pass. In the case of inbound records, license denotes the ability to manage the package after receiving it via an incoming interface; deny denotes the ability to dismiss the package.

Before they leave the device, outbound access records measure packages. Approaching packages are forwarded to the outgoing interface, where they are then prepared using the outgoing access list. The item should be transmitted to the yield cradle if granted; else, the packet should be discarded if denied.

Creative Ways of How to Use ACL

You need to follow a few recommended practices while implementing ACLs to guarantee that security is tight and suspicious traffic is banned:

  1. There are ACLs everywhere

Access control lists are enabled on all interfaces and are utilized in practically every security and directing application. Because the function of your grounds organization is based on the standards for outward-facing interfaces, this is proper. Interfaces, on the other hand, are equivalent, and you don't require some to be ACL-protected while others are left open.

For inbound ACLs, the application process an ACL to all touchpoints is crucial, as these are the principles that decide which addresses are allowed to carry data within your company. These are the most crucial considerations.

  1. ACL in order

The engine that authorizes the ACL almost usually starts at the top and works its way down the rundown.

Access control lists are preferred by associations because they have less computational cost and function at a quicker rate than stateful firewalls. This is crucial when attempting to build security for fast organization interfaces. In any case, the slower the exhibition will be, the longer a package remains in the framework while being examined in violation of the access control list.

Try to present the values that you feel will be pushed at the ACL's summit. Working from the broad to the specific, while ensuring that the guidelines are properly acquired. You should be mindful that each package will be followed by the underlying standard that it triggers; as a consequence, you may find yourself sending a package via one guideline while intending to obstruct it via another.

  1. Document your work

Keep track of why you're adding ACL rules, what they're intended to do, and when you added them.

It is not necessary to include a separate comment for each standard. You can make a single remark, a lengthy explanation for a specific concept, or a combination of the two for a square of rules.

So that no one is mistaken about their intent designers can ensure to keep current standards up to date.


Package channels are an organization's ACLs. They have the power to control, grant, or deny traffic, which is crucial for security. You can use an ACL to control packet flow for a single or a group of IP addresses, as well as for different protocols like TCP, UDP, and ICMP, and so on.

Using an ACL to restrict access to an unacceptable interface or a source/objective that is erroneously evolving could have a negative impact on the business. A single ACL declaration can disable Internet access for an entire firm.

Understanding the inbound and outbound traffic streams, as well as how ACLs work and where they should be placed, is critical for avoiding negative execution. Remember that the job of a switch is to route traffic to the appropriate interface, so a stream can come in (inbound) or go out (outbound) (outbound).

Despite the fact that a strong firewall provides much better security, it can compromise the organization's presentation. However, an ACL is sent directly on the interface, and the switch uses its equipment capacities to handle it, making it much faster while still providing a reasonable level of security.
