DevSecOps

SD-WAN (Software-Defined WAN)

The world has changed, as businesses embrace SaaS and IaaS apps in many clouds, IT realizes the user experience is terrible. WANs from a different period aren't equipped for the cloud's traffic surge. This traffic generates management complexity, unpredictability, and data vulnerability.

Opening the enterprise to the Internet and cloud increases threat and compliance challenges. It's difficult to protect an enterprise's vital assets when workers, partners, contractors, vendors, and guests use apps. Broadband on the WAN increases security needs, causing IT to balance user practice, security, and intricacy.

Because of new business models, we need a new way to think about networks. SD-WAN solves the problems that IT is facing right now. This novel network connecting strategy can reduce operational expenses and improve multisite resource consumption. Network managers can use bandwidth more efficiently to boost the system’s capacity without compromising security or privacy.

SD-WAN (Software-Defined WAN)

An overview of SD-WAN

A WAN is a network that spans great distances to bring numerous smaller networks together. It typically links remote offices and facilities of a large company to the parent company's main network. Common wide area networks have software and hardware that work together to define and direct traffic. It is common to practice acquiring both the software and hardware components of this system from the same networking provider.

By SD Wan definition, it means a software-defined wide area network is an adaptable WAN design that works with many hardware platforms and network topologies. There are no restrictions on what kind of network gear can be used with the controlling software. Off-the-shelf gear, as opposed to specialist hardware, is sufficient for setting up an SD-WAN for a company. As a result, SD-WANs are more cost-effective, adaptable, and scalable than conventional WANs.

Architecture

SD-WAN employs a network structure that is abstracted in nature. The network is separated into the control plane and the forwarding plane in an abstract design. The control plane of an SD-WAN architecture is moved to a centralized location, such as a company's main office. Therefore, an on-site IT department is unnecessary for handling the grid when it can be done remotely.

On-premises, cloud-enabled, and cloud-enabled with a backbone are the three primary categories of architecture:

  • With an on-premises SD-WAN, its equipment is kept in a dedicated location on the premises. Without relying on the cloud, this network gives its administrators full control over the infrastructure on which their network runs. For information that must remain private and cannot be transmitted online, this is the perfect solution.
  • Connecting to a virtual cloud gateway over the internet, cloud-enabled SD-WANs improve network accessibility and performance for cloud-native applications.
  • Cloud-Based with solid underpinning SD-WANs give administrations an spare gridlock by linking the network to a nearby point of presence, such as in a data center. It facilitates the transition of data from the open internet to a more secure private network. Using a private connection makes SD-WAN more secure and provides continuity in the event of a connection overload or failure.

How Does SD-WAN Work?

To make SD-WANs possible, the control plane and data plane are separated. The term "control plane" is used to describe all components in a network that determine the paths taken by packets. After receiving instructions from the control plane, data is transmitted along the data plane.

At one time, vendor-specific hardware appliances were used to establish a solid connection between the control plane and the data plane. By decoupling the control plane from the data plane, SD-WAN technology allows routing to be performed in software on commodity hardware instead of by dedicated hardware routers.

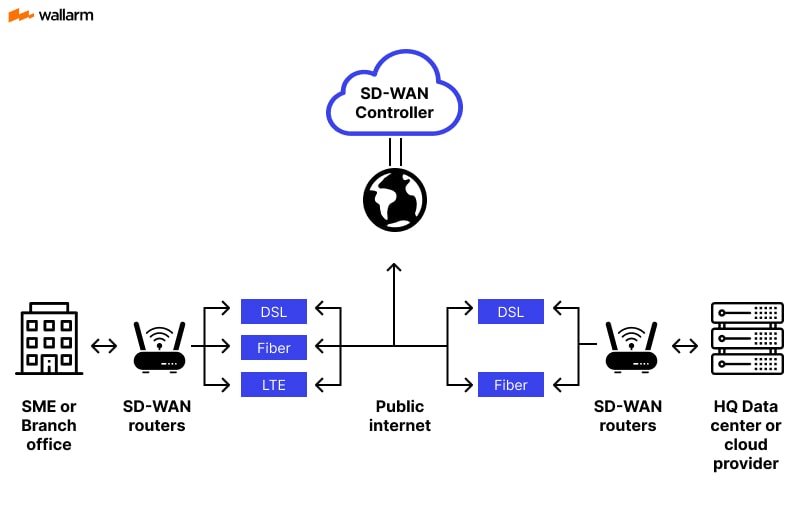

Architecture sd-wan

Why Use SD-WAN?

An efficient SD-WAN solution frees businesses from the tedium of establishing and operating networks, so they can use those resources into adopting applications like IoT, VoIP, unified communications, and edge computing services.

IT departments can integrate over-the-top (OTT) services into automated and programmable cloud-native platforms, allowing them to concentrate on enhancing these business-focused services rather than managing WAN difficulties. Cloud-native Secure SD-WAN gives IT a virtual WAN architecture that is fully automated and policy-driven. Thus, the network is converted from a stumbling block to a tool for delivering business services.

In most cases, SD-WAN security services provide:

  • Utilizing the internet, DIA, and LTE can help reduce circuit expenses.
  • Increasing network flexibility by centralizing WAN management.
  • Build an MPLS/broadband/DIA/LTE active-active hybrid network for greater per-site availability and efficiency.
  • Workflow automation and the use of pre-made IT processes called "templates" can streamline everyday activities.
  • Get rid of the cluttered, inefficient infrastructure of branch offices' devices.
  • Access cloud and SaaS applications over a safe and dependable network.
  • Supply carrier and circuit-level network independence.
  • Streamline WAN administration, rollout, and configuration changes by consolidating and unifying the entire WAN.

Benefits of SD-WAN

Incorporating SD-WAN technology has many advantages for businesses.

  • Enhanced program capacity is achieved by employing WAN optimization strategies and the flexibility to reroute traffic on the fly to meet the changing needs of individual programs.
  • In the event of a connection failure or congestion, traffic will be automatically sent to another link, thanks to automatic failover. As a result, application performance is increased and latency is decreased even further.
  • Save money on costly leased MPLS circuits by routing less important or sensitive data through public internet connections; save the private links for latency-sensitive or mission-critical applications, including voice over IP (VoIP). Due to SD-adaptability, WAN’s overprovisioning is unnecessary, thus cutting its costs.
  • Site deployments, settings, and operations are completely automated.

SD-WAN Meets Business Challenges

  1. Legacy WAN as a Limiter

The business goals of any multi-site or digital-first company that uses the WAN to connect its employees, customers, and partners should directly impact the design of the entire WAN. Yet, enterprise WANs usually hamper company goals. A legacy WAN becomes a bottleneck due to antiquated policy design, adherence, and execution.

  1. SD-WAN Is Business-Driven

Business intent and application experience drive SD-WAN policy architecture, automate deployment and build a dynamic environment that can swiftly meet business objectives.

Secure SD-WAN architecture simplifies network management by providing a secure cloud IP platform. Secure SD-WAN integrates company goals and intent into the WAN. Secure SD-WAN streamlines network and security architecture with a multi-purpose platform and native apps and services.

  • It simplifies maintaining uniform policies by ensuring they are up-to-date and fit their objectives across all platforms.
  • Secure SD-identity WAN's management protects credentials and controls access by attaching contextual policies to users, applications, destinations, and pathways.
  • It combines layers 3-7, SD-WAN, and a next-generation security stack.
  • Everything is controlled by an SD-WAN Director with orchestration and analytics, and all functionality is merged into a single view, making SD-WAN and WAN edge security easy to configure and control.

Comparison

  1. MPLS vs SD-WAN

SD-WAN is virtualized while MPLS is hardware-based. SD-WAN is the software abstraction of MPLS technology that secures branch sites and remote users. MPLS is more expensive, dedicated, and has backup links for failover. SD-WAN supports numerous network connections and failovers with real-time traffic shaping and intelligence.

SD-WAN and MPLS give data centers and branch offices network performance, quality, and availability. SD-WAN controls MPLS, internet, and LTE connections and routes traffic over the best available path in real-time. Both offer reliable, secure, private connections but differ in flexibility, pricing, and capabilities.

Here's a breakdown of the two technologies:

Here's a breakdown of the two technologies:

MPLSSD-WAN
Backhauling traffic to the data centerBranch traffic is routed without backhauling.
DPN with low but dependable bandwidthMultiple transport options exist: DIA, Broadband, LTE, and MPLS
Unencrypted data partitioningVPN encryption
Predetermined pathways and hardware increase expenses.Traffic guidance and software save costs.
Traffic volume affects UX and app performance.Traffic volume doesn’t affect user experience or app performance
No securityStack security
No application visibility, manual configurationAutomated and analytic real-time visibility
  1. SD-WAN vs SDN

SDN allows services on-demand in traditional information headquarters, decreasing functional costs and boosting network performance. On the other hand, SD-WAN provides scalable and safe global connection at a lower cost than standard MPLS networks. To put it simply, SD-WAN is SDN applied to the WAN.

Both of them control and data forwarding planes and can be virtualized to incorporate firewalls, unified threat supervision, and WAN optimization.

Comparing SD-WAN and SDN

SD-WANSDN
In addition to data centers, used for branch sites and remote users.On-site data centers and service provider framework.
The vendor configures and manages the system.User or administrator-configurable.
Secures and prioritizes traffic.Provides high bandwidth when it's needed.
Provides orchestration, control, and zero-touch provisioning.Provides a unified interface for managing and coordinating several components.
Supports VPNs.Supports fundamental network framework.
Uses commercially available x86 hardware and software in the cloud.Utilizes many commodities and specialized switching gear.
Reduces OPEX and CAPEX.Reduces solely OpEx.
  1. SD-WAN vs traditional WAN

From WAN optimization to VPNs, conventional WAN technologies and methodologies have naturally evolved into SD-WANs, encrypting traffic between branch headquarters and the central server. However, SD-WAN improves upon this approach by implementing smart traffic routing and safety controls.

Private WAN networks and their optimization for historically prevalent traffic patterns became the foundation upon which WAN optimization was created. In addition, SD-WAN makes the most of limited budgets by making use of the internet's free or low-cost services. Strategies such as lively path assortment, traffic shaping, and application prioritization are employed.

How Is SASE Connected To SD-WAN?

Both are cloud-based technologies that can help businesses strengthen their protection and networking framework. With any WAN or cloud service, you have your choice of two viable options. SASE and SD-WAN both allow remote offices to access cloud-based services, and they both provide these advantages without breaking the bank.

Many advantages, such as scalability, cost savings, and adaptability, are available with any cloud-based service. However, SD-WAN is preferable for SMEs since it allows for greater management of both data and voice traffic. SASE is preferable for large businesses with heavy data traffic loads.

If your business needs a full-featured cloud security solution, SASE could be the way to go. If you're looking for a strategy to optimize your hybrid WAN connection's traffic, SD-WAN can be the way to go.+

Secure SD-WAN

While there are obvious gains to be made in terms of efficiency and performance thanks to SD-WAN, there are also serious safety concerns to be aware of. When the information leaves a company's branch offices and goes straight to the internet, it is no longer monitored or protected by perimeter-focused security measures. For this reason, remote offices are easier targets for cybercriminals.

As more and more businesses use SD-WAN, it is vital that they take steps to safeguard their network against cyberattacks. Flexible deployment models, threat prevention, and scalable management solutions are all fundamental components of an effective SD-WAN safeness framework.

Disadvantages Related To SD-WAN

Despite how fantastic all of that capabilities may seem, SD-WANs are not without their drawbacks. They are primarily useful for using cloud-based software. Their lack of an on-site security system is problematic.

Plus, SD-WANs are typically done in-house, so your IT staff will be in charge of the whole project, from strategy to design to implementation to ongoing maintenance. Because of this, it is imperative to have personnel capable of developing and maintaining this solution. If something goes wrong, it could cost a lot to bring in extra help from the outside.

Even SD-WANs can have sluggish performance on occasion. Although establishing a connection to the cloud is simplified, jitter and packet loss can still occur in the afterlife. Especially if you work for a digital company, this is a situation in which you'll need to examine the pros and cons thoroughly.

How To Deploy SD-WAN?

Network architectures have always adapted to modern business conditions. Legacy WANs can't match business needs; hence most companies use hybrid WANs. Hybrid WANs profited from SD automation, WAN agility, and intelligence.

Today, SD-WAN use cases are delivered and controlled from the cloud, improving speed, scalability, and flexibility. Cloud-delivered SD-WAN is an automated, on-demand, and proactive business method that organizations use to streamline secure branch office and IoT connectivity.

SD-WAN understands application traffic better than legacy WAN. This improvement in application traffic flow helps an administrator to make smart judgments that correspond to company goals.

FAQ

Open
Is SD-WAN suitable for all businesses?
Open
Is SD-WAN scalable?
Open
How does SD-WAN differ from traditional WAN?
Open
What are the benefits of SD-WAN?
Open
What is SD-WAN?
