What Is Multiprotocol Label Switching (MPLS)?

What Is Multiprotocol Label Switching (MPLS)?

Embarking on a Deep-Dive Exploration: Decrypting the Intricacies of MPLS (Multiprotocol Label Switching)

In the extensive sphere of data management, MPLS or Multiprotocol Label Switching emerges as a revolutionary traffic regulation paradigm. Specifically crafted to enhance and direct digital flow across vast enterprise geographies and service provider terrain, it is a judicious tool for directing data. The design of MPLS surpasses the typical pattern of IP routing, facilitating data a course based on predicate path labels rather than on comprehensive network endpoints.

To understand this better, let's examine how traditional IP routing works:

Classic IP Routing Operations:


1. Data packet arrives at Initial Point A.

2. Initial Point A examines the packet's IP envelope to identify the next desired destination.

3. The packet commences its voyage towards the anticipated target.

4. This sequence is iterated to the next initial point.

However, let's decode the intricacies of the MPLS method:

Carving the MPLS Route:


1. Data packet arrives at Initial Point A.

2. Initial Point A scrutinizes the packet's label (disregarding IP envelope details).

3. Initial Point A dispatches the packet to the following location on the Label Switch Pathway (LSP).

4. These steps are reiterated to the next initial point on the LSP.

An integral part of MPLS's innovative design is that the initial point maps out the entire journey right at the start, transmitting this plotted course to all subsequent initial points using the packet's dedicated label. This unique feature allows the packet to travel the path without each initial point having to decode the final IP address, resulting in a speed boost.

Remarkably, MPLS integrates with an assortment of protocols, encapsulating IP, Asynchronous Transfer Mode (ATM), and Frame Relay. This functional flexibility boosts its compatibility across assorted network standards, thereby validating it as "Multiprotocol" Label Switching.

In essence, MPLS emerge as a technical marvel, streamlining and governing digital propagation within a network. It employs specific labels to maneuver packets along defined routes, negating the need for exhaustive and power-consuming IP address review at each initial point on its journey. This strategy culminates in an efficient and regular network data exchange, vital for transmitting substantial and confidential data.

In our next discourse, we'll delve deeper into the design and functional subtleties of MPLS to equip you with a thorough understanding of this exceptional network methodology.

Unraveling the Draft: An Inclusive Vision on MPLS Framework

Multiprotocol Label Switching (MPLS), a unique purpose-built approach for data flow guidance, is underscored by its neutral approach towards diverse protocols. Its inception was driven by the aspiration of enhancing the transmission of data and regulatisng traffic within enterprise networks along with service provider infrastructures. Coming to grips with the premise of MPLS and its innate operations demands a thorough exploration of its inherent aspects and possibilities.

Scrutinizing the Core of MPLS

The architecture of MPLS rides on key components, such as:

  1. Label Switch Routers (LSRs): They act as guardians of the networks, governing data dispersion enabled by MPLS. Edge LSRs are situated at the fringe of an MPLS network, undertaking the role of attaching or discarding labels.
  2. Labels – Slice Markers: These are minuscule, rigid, methodically arranged code segments representing a Forwarding Equivalence Class (FEC). A label can be a mere 20-bit data fragment combined with a data unit guiding LSRs during transportation, absolving them from cumbersome routing catalog explorations.
  3. Label Switched Paths (LSPs): Regarded as the conduits within an MPLS network, they are validated by the designated labels at each intersection.
  4. Forwarding Equivalence Class (FEC): It embodies an aggregation of IP data units that move along an identical path while receiving similar forwarding disposition.

Grasping MPLS Functions

The mechanism of MPLS relies largely on two operations, namely Label Dispensation and Data Package Transfer.

Label Dispensation

Within the arena of MPLS, labels get associated with data packets as they infiltrate the network. The Edge LSR scrutinizes the package header and correlates it with an appropriate FEC. A distinct label attached to this FEC is thereafter appended to the packet.

Here is a simple depiction of the process:

def affix_label(packet):

    fec = identify_fec(packet)

    label = fetch_label_for_fec(fec)

    packet.label = label

    return packet

Data Package Transfer

Post the granting of labels, the transportation of data packages is carried out in accordance with these assigned labels. Every LSR in the network makes routing decisions strictly based on the attributed label, replacing the packet's original label with a fresh one while guiding it along the LSP.

Here is a guide to understanding the process:

def relocate_packet(packet, lsp):

    alternate_label = obtain_new_label(packet.label, lsp)

    packet.label = alternate_label

    dispatch_packet_to_next_hop(packet, lsp)

Essentially, MPLS separates the packet forwarding action from the routing operation, hence boosting adaptability and efficiency in the journey of data packets. This feature evolves from the forwarding technique, which leans on a straightforward label examination and alternation, thereby avoiding a taxing search in the routing directory.

In the ensuing chapter, we will probe further into MPLS's substantial impact on present networking platforms and its capacity to amplify the performance and consistency of networks.The growing inclusion of Multiprotocol Label Switching (MPLS), no doubt, is gaining attention within contemporary network structures. This writing aims to point out the evolving role of MPLS as an essential part within these systems, and its significant contribution to boosting network stability and efficiency.

A good starting point to appreciate MPLS’s importance in network infrastructures is to understand its primary purpose. Fascinatingly, MPLS possesses a unique position that is situated between Layer 2, otherwise known as the Data Link Layer, and Layer 3, popularly referred to as the Network Layer, of the OSI model. This tactical placement empowers MPLS to work efficiently in a variety of intelligent routing situations. As opposed to traditional methods which depend on extensive network identifiers, MPLS leans toward using compact labels with fixed-size for packet steering, hence enhancing task simplicity and the swiftness, which is also a notch above conventional IP routing techniques.

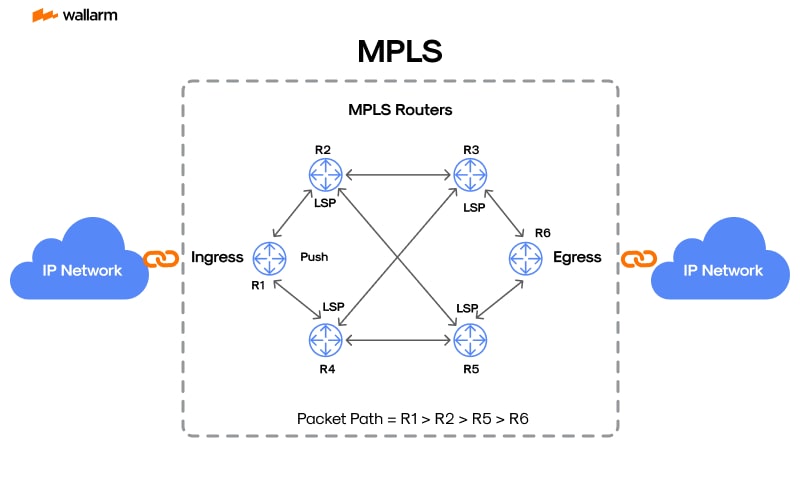

To illustrate how MPLS operates within a typical network environment, consider the following steps:

1. A data packet enters the network system.

2. The original router, casually termed as the ingress router, assigns the packet its exclusive identifying label.

3. This attached label solely governs the trajectory of the packet within each router it passes through.

4. The final router, often referred to as the egress router, removes the label and transports the untouched packet to its final destination.

Digging deeper, MPLS holds several key roles within today's digital networks:

  1. Fast and Efficient Data Transfer: MPLS boosts network efficiency by using customized labels for packet navigation, which increases data delivery pace and reduces network congestion, surpassing traditional IP routing techniques.
  2. Maintaining Quality of Service (QoS): MPLS allows network managers to have full control over traffic pathways based on particular preferences, crucial in real-time application instances like VoIP and video conferencing that necessitate low latency and jitter.
  3. Proficient Traffic Management: MPLS demonstrates its prowess in guiding data flow directions – a quality that permits network managers to direct particular traffic within the network - an approach that maximizes resource usage.
  4. Scalability: Owing to its remarkable scalability, MPLS becomes a preferred choice for large businesses and service providers, adept at handling multiple VPNs within an organization's framework cost-effectively.
  5. Protocol independence: MPLS operates independently of protocols. It is capable of supporting different payload types such as IPv4, IPv6, Ethernet, ATM, DSL, etc., displaying its versatility and making it an all-inclusive solution for varied network service needs.
  6. Enhanced Security: MPLS offers a secure VPN platform for transporting confidential data, segregating traffic data and offering protection from inadvertent invasions, thereby boosting overall network security.

In conclusion, MPLS commands a central role in modern networking. Its remarkable architecture boosts the rate of data transmission and service quality, proficient traffic management, unmatched scalability, and improved security. These attributes address a broad spectrum of network needs, showcasing MPLS's versatility.

Delving Deeper into the Complexity of Multi-Procedure Label Switching (MPLS): What Lies at Stake?

Are you exploring the intricate details of Multi-Procedure Label Switching (MPLS)? This method, devoid of any biases towards a specific protocol, is tailored mainly to expedite and orchestrate data movement across an organization's vast network and preferred service vendors. What key elements make this routing mechanism indispensable and why MPLS is creating ripples across many establishments? Here, we reveal the tangible advantages of an MPLS setup.

1. Boosting Efficiency and Minimizing Network Snags

Instead of constantly scanning a routing table at each intersection, MPLS ingeniously deploys labels to nudge packets along designated trajectories. This behavior accelerates packet movements and lessens disturbances in network links.

Let’s embody this with relative numbers:

Information Transporting Mechanisms Duration of Packet Journey
Standard IP Routing 10 to 15 microseconds
MPLS 1 to 2 microseconds

These data points indicate that MPLS plays a genius role in reducing data packet travel time, thereby enhancing the network's overall effectiveness.

2. Advanced Quality of Service (QoS) Elements

A unique feature of MPLS is its advanced QoS modules that facilitate classification of different data traffic varieties. This is beneficial particularly for real-time applications such as Internet Telephony (VoIP), virtual conferences, and media streaming that require minimal delay and negligible packet drops.

Refer to the following simplified outline of MPLS labels prioritizing data traffic:

class MPLSMarker:

    def __init__(self, rank, marker):

        self.rank = rank

        self.marker = marker

# Deriving unique MPLS markers based on rank

voip_marker = MPLSMarker(1, 'VoIP')

video_marker = MPLSMarker(2, 'Video')

data_marker = MPLSMarker(3, 'Data')

# Packets bestowed with VoIP markers garner top rank

3. Scalability

MPLS structures display remarkable scalability, easily adapting to growth without necessitating major modifications to the central control panel. These features distinguish MPLS as a cost-conscious choice for rapidly growing enterprises.

4. Traffic Regulation

MPLS arms network stewards with the power to prescribe traffic pathways, thereby not wholly reliant on the routing protocol. As a result, network resources are exploited judiciously, elevating the collective performance of the network.

5. Reliability

A compelling facet of MPLS is its robust failover competencies. If a connection gets overwhelmed, the traffic is instantly rerouted via a substitute route, guaranteeing unbroken service.

6. Refined Network Oversight

Employing MPLS simplifies the process of managing multiple protocols, thereby lifting the weight off network administration. This tactic potentially leads to curtailed operational expenditure and a palpable increase in agility.

To conclude, the merits of MPLS extend beyond mere network performance enhancement. It offers a powerful blend of features like advanced QoS, scalability, effective traffic regulation, reliability, and refined network oversight. This ascends it to a prime position in modern networking. A detailed study of MPLS and its benefits could direct businesses towards making informed decisions about their network infrastructure.

MPLS: Delving into its Potential Risks and Points to Consider

Multiprotocol Label Switching (MPLS) undoubtedly holds significant potential for amping up network performance. Despite its benefits, it does encompass a set of hurdles one might encounter. Recognizing these hurdles can assist in making a well-versed judgment about the suitability of MPLS for your network requisites.

  1. Intricacy: MPLS presents itself as an intricate entity. Implementing MPLS necessitates a profound comprehension of networking ideologies and protocols. This intricacy could trigger misconfiguration and mismanagement, leading to potential dips in network efficiency.
  2. Expenses: MPLS networks might require substantial investment for their installation and sustained maintenance. The expenditure not only includes the hardware and software involved, but also the recurring expenses of network supervision and problem resolution.
  3. Size Limitation: MPLS, while capable of bolstering network performance, might not be the ideal pick for mammoth-sized networks. The intricacy of MPLS might hinder its scalability, particularly in networks with excessive traffic pattern fluctuations.
  4. Absence of Complete Visibility: MPLS falls short in offering absolute clarity over the transit of network traffic. This lack of in-depth visibility could complicate the task of problem diagnosis and performance monitoring.
  5. Vendor Dependence: Many MPLS solutions are proprietary, which creates a risk of becoming reliant on a single supplier. This could curb your flexibility to shift to another solution should your requirements evolve or superior alternatives turn up.
  6. Security Issues: MPLS, while it can augment network performance, does not inherently offer any superior security features. This implies that you would need to integrate additional safety measures to fortify your network.

Let's explore in detail a few of the above-discussed hurdles:

A. Intricacy

The process of executing MPLS calls for significant knowledge and expertise in networking principles and protocols. To understand this, let's look at the stages involved in setting up an MPLS network:

# 1st Stage: Router Setup

router_alpha = Router()

router_beta = Router()

router_gamma = Router()

# 2nd Stage: MPLS Network Assembly

mpls_network = MPLSNetwork(routers=[router_alpha, router_beta, router_gamma])

# 3rd Stage: MPLS Label Configuration


# 4th Stage: MPLS Path Configuration


This simplified model effectively signifies the expertise required to execute MPLS.

B. Expenses

The economic investment involved in the execution and maintenance of an MPLS network can be high. A rough estimation of the cost components includes:

Cost Constituent Approximate Cost
Hardware for MPLS $10,000 - $20,000
MPLS Software $5,000 - $10,000
Network Supervision $1,000 - $2,000 monthly
Problem Resolution $500 - $1,000 per occurrence

These charges can quickly accumulate, more so for larger network infrastructures.

C. Size Limitation

Although MPLS is capable of enhancing network efficiency, it might fall short for networks of extensive size. The elaborate structure of MPLS might impede its scalability, particularly with networks exhibiting variable traffic trends.

To summarize, MPLS brings with it a plethora of advantages, but also potential hurdles that need consideration. By appreciating these challenges, an insightful judgment can be made about MPLS's aptitude for catering to your network needs.

Unpacking Practical Uses of MPLS

Multiprotocol Label Switching (MPLS) is more than just an abstract theory; its tangible metier has reinvented network operations. This chapter explores the many ways MPLS has made its mark across various sectors and real-life contexts.

1. Role of MPLS in Telecoms and Service Provision

The telecom industry is a testament to the powers of MPLS. Service deliverers harness the might of MPLS to generate a plethora of functions, including delivering Virtual Private Networks (VPNs), Quality of Service (QoS), and traffic shaping.

Case in point, MPLS VPNs empower service providers to help their enterprise clients fuse multiple locations across a broad network scope, while upholding top-tier security standards and privacy. Here’s a stylized overview of MPLS VPNs’ operations:

class MPLS_VPN:

    def __init__(self, client_locations):

        self.client_locations = client_locations

        self.mpls_framework = MPLS_Framework()

    def unify_locations(self):

        for location in self.client_locations:


The example illustrates the notion of MPLS VPNs using Python's class concept. The MPLS_VPN class accepts a list of client locations and unites them via an MPLS framework.

2. Traffic Sculpting and MPLS

Traffic shaping via MPLS holds substantial influence. With this tool, network overseers can dictate data packet travel routes across the network. This aids in the judicious allocation of network resources while ensuring vital traffic receives appropriate prioritization.

For instance, check out this chart detailing how MPLS fosters efficient traffic shaping:

In Absence of MPLS In Presence of MPLS
Traffic defaults to the smallest path, unmindful of network bottlenecks Traffic can be ushered towards less congested routes
No hierarchy for crucial traffic Crucial traffic receives upper-tier treatment
Subpar distribution of network resources Optimal allocation of network resources

3. Cloud Networking and MPLS

MPLS has etched an integral spot in cloud networking. Cloud service purveyors utilize MPLS to intertwine data centers while providing high-standard performance and dependability. MPLS supports the construction of comprehensive circuits across any transport medium or network technology--an essential feature for the diverse terrain of cloud networks.

4. MPLS in Mobile Networks

Mobile networks harness MPLS' abilities for smooth mobility and maximized resource usage. For instance, MPLS can orchestrate traffic flows within different segments of a mobile network, such as the connection between a mobile gadget and a base station, or amongst various base stations.

In all, MPLS commands a vast spectrum of uses in daily life, extending from telecommunication and service delivery to cloud and mobile networks. Kudos to its capacity to produce high-caliber, steadfast, and sheltered networking services, MPLS is marked as pivotal gear in today's interconnected globe.

Future Developments in Multiprotocol Label Switching: A Path Forward?

As we venture forward and speculate about the evolution of Multiprotocol Label Switching (MPLS), we are reminded of how integral this technology has been to networking landscapes over the past few decades. It has distinguished itself through its capacity to organize network transmission, boosting performance, making it the method of choice among many enterprises. Yet, what does the advancing future indicate for MPLS? Let's embark on this exploration.

1. Aligning with the Software-Defined Networking (SDN) paradigm

The contemporary approach to managing networks, namely Software-Defined Networking (SDN), is gaining popularity due to its method of segregating the control workflows from the database workflows. This newfound orientation is strikingly divergent from the typical network frameworks where data management and control operations coincide.

The harmonious functionality of MPLS and SDN could forge a network that is flexible and proficient. While MPLS could take charge of the data flow, shunting packets based on their distinctive labels, SDN could overlook control functions, devising packet pathways throughout the network.

# Hypothetical code demonstrating the interaction of MPLS and SDN

def SDN_Administrator():

    # Figure out the best route for a packet

    course = SDN_plan_best_route(packet)

    # Guide MPLS to channel the packet along this route

    MPLS.redirect_packet(packet, course)

2. Burgeoning Applications in Mobile Ecosystems

With 5G and the Internet of Things (IoT) revolutionizing the digital world, mobile networks have been grappling with increasing intricacies. MPLS could navigate this labyrinth by providing a scalable, fit and competent modus operandi for routing network traffic. As the number of network-attached devices multiplies, the capacity to guide packets swiftly and precisely will heighten in importance.

3. Amplified Security Incorporations

Future versions of MPLS could be fortified with upgraded security adaptations to combat the rapidly evolving cyber threats. Innovative options could be explored, ranging from stronger encryption modalities or incorporating inherent threat identification and mitigation mechanisms.

4. Elevated Quality of Service (QoS)

Quality of Service (QoS) is an integral facet of all networks, and MPLS thrives in this domain. Future MPLS enhancements could focus on conquering new heights in QoS, potentially through state-of-the-art traffic management or packet hierarchy systems.

Current MPLS QoS Capabilities Potential Future Developments
Traffic Structuring Progressive Traffic Sculpting
Packet Hierarchization Advanced Packet Ranking
Load Distribution Dynamic Load Dispersion

5. Expanding Interoperability

As network diversity proliferates, the capability of different systems to work together, termed interoperability, will gain significance. Forthcoming iterations of MPLS might offer superior interoperability with other protocols. This would aid seamless incorporation of MPLS into an extensive network architecture.

To sum up, MPLS might be a seasoned technology, but its relevance is in no way waning. Its adaptability, potency, and resilience make it well-equipped to tackle the challenges posed by future networks. By syncing with innovative technologies like SDN, intensifying security provisions, enhancing QoS, and broadening interoperability, MPLS stands on a firm foundation ready to contribute significantly to network infrastructure for the foreseeable future.
