What a Virtual Machine (VM)?

Making a digital duplicate of a stored device is termed "virtualizing" it. It is often defined as a freeware package with apparatus processor aptness. In virtualization, a distinguished application mimics the hardware process to generate a processor milieu.

What a Virtual Machine (VM)?

What Exactly is a VM (Virtual Machine)?

A virtual machine is a freeware that simulates computer hardware. "The Guest" denotes the application, while "host" states the drive/hardware. They're usually interchangeable.

Virtually it aids one bodily computer to take care of numerous virtual PCs, each with its OS and apps. It can't talk to real ones. Alternatively, it practices a hypervisor/virtual machine recorder to connect with the apparatus. Each machine has its processors, RAM, and disc space. It isolates each virtual computer to prevent issues.

How Does It Work?

When mounted on a PC or server, a hypervisor permits the solid machine to properly divide its freeware system from its hardware to the course. The structure is afterward able to divide itself into several separate "virtual computers."

After that, each of these newly created VM can independently run its own programs and freeware system while still sharing the original assets provided by the bare metal server managed by the virtual machines. mainframe, RAM, storage, and additional assets are included here.

The hypervisor performs a character similar to that of a traffic cop; it directs and assigns the assets of the bare metal to each of the frequent new virtual computers. It aids in ensuring that the gadgets do not interfere with one another.

The majority of hypervisors fall into one of the following classes:

  • Type 1 from the hypervisors is those that alter the operating system by employing straightly on the hardware. The formation and administration of virtual machines (VMs) on a hypervisor typically require using a separate piece of software. Using certain administration tools, you can choose a guest operating system to install on the virtual machine. One such tool is VMware's vSphere.
    You can develop recurrent Virtual Machines from a single one by using it as a model and copying it. You might need to generate many VM templates for different purposes, such as software testing, production database management, and development environment configurations, but this will depend on your requirements.
  • Type 2 hypervisors often focus on single-user desktop or notebook machines intended to function as applications within the host operating system. When using a Type 2 hypervisor, you must manually create a virtual machine (VM) before installing a guest operating system. You can manually shape the number of processor cores and memory so that a VM can use the hypervisor to bring physical resources to the virtual machine (VM). You may also construct varieties for the graphics, for instance, the level of 3D acceleration, trusting the hypervisor's capabilities.

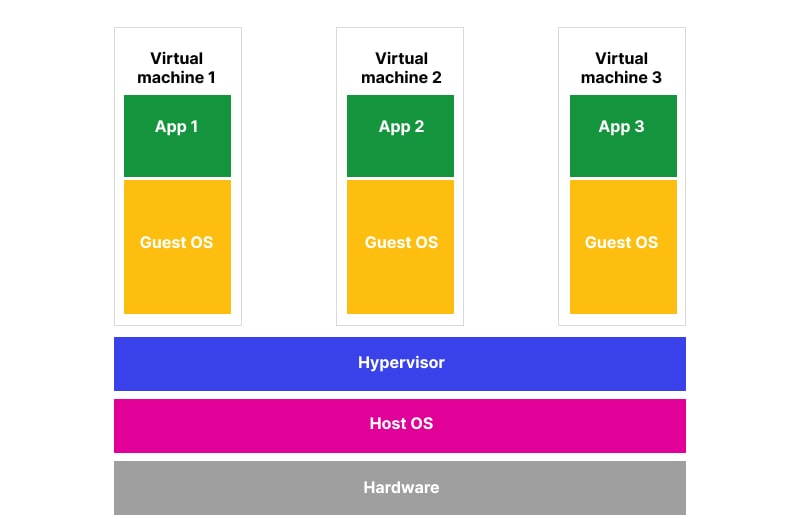

How Does VM Work
How Does VM Work

What Are Virtual Machines Used For?

You can shield the hardware/drive assets of a computer from its actual surroundings using imitation. This method has potential programs in a assortment of disciplines. Here are five examples:

  • Cloud computing: You can transform traditional physical components into virtual ones through virtualization technology. After then, cloud computing uses the internet to disperse the virtualized assets. Dropbox, Salesforce, and Google Drive are all examples of cloud-based services.
  • Software testing: Virtual machines allow for creating nearly-production-ready settings for developing software. These settings are cut off from the rest of the world's infrastructure. Developers can run tests on code without worrying about breaking anything else in the system when it's isolated.
  • Malware investigations: Researchers may now run dangerous programs in isolated settings thanks to virtual machines. For research purposes, malware is contained within a virtual machine (VM) rather than the rest of the infrastructure.
  • Disaster management: A virtual machine can be used to create an identical system on the cloud. By having many copies, you can restore the system in the event of failure. iPhone owners, for instance, often sync their gadgets with iCloud to save copies of their data. When a user's phone is lost, stolen, or damaged, the data can be accessed over iCloud and transferred to a new device.
  • Running programs with incompatible hardware: Let's say you're using an outdated app on your modern smartphone. Even though your phone has had multiple updates in the intervening years, it has not. Unfortunately, the app might not work with your device's new OS because it hasn't been updated (OS). You can use a virtual machine to create a platform with the desired operating system so that the legacy software can be launched.

Advantages and Disadvantages of Virtual Machines

Due to their adaptability, virtual machines find widespread application in the professional and corporate worlds.

The advantages of virtual machines include the following:

  • Resource expansion: You can do more with a single device by using a virtual machine (VM) to run incompatible apps.
  • Efficiency: This saves you time, money, and space because you only need one device to run both macOS and Windows.
  • Innovation: Software may be tested on many platforms without the risk of harming the developer's actual computer, which helps find and fix flaws before they are released.
  • Safety: The capacity of IT departments to respond to and mitigate software threats to their networks is substantially enhanced by the disaster recovery and application provisioning features offered by virtual machines. The ability to quickly and easily recreate a production environment in the event of an IT disaster is a vital component of every successful organization.

The drawbacks of virtual machines include the following:

  • Cost: Virtual machine cloud computing is pricey. Virtual machines are expensive initially. Invest extra if needed.
  • Performance: Virtualized machines still rely on the host machine's resources. A prevailing computer can host multiple virtual machines. Insufficient power creates volatility.
  • Efficacy: Virtual machines are less accessible hardware-wise. No direct hardware access. Most IT organizations don't need its speed. It creates a virtual-physical balance.
  • Complexity: virtual machine Multi-LANs make it multifaceted. In instances of a fiasco, it will be hard to pinpoint the problem. Those conversant with virtual machine structure and hardware.
  • Infection: It can effortlessly impact a frail host system. OS problems cause this. Infected virtual computers can spread to others if associated.

Types of Virtual Machines

There are two main categories of VMs available to users:

  • Process VMs: By hiding the specifics of the hardware or operating system, a process virtual machine creates a platform-independent development environment in which a single progression can act as if it were an application running on the host machine. The Java Virtual Machine is a process VM that permits Java programs to be run on any operating system as though they were written specifically for that system.
  • System VMs: If you need to replace a physical machine with a virtual one, you can use one entirely virtualized. Numerous virtual machines, each with its copy of the operating system, can share the host computer's hardware resources thanks to a system platform. A hypervisor is required for this virtualization process; hypervisors like VMware ESXi can operate on their own or top of an operating system.

Types of Virtualizations

Virtualization is known as emulating many computers' worth of software and hardware resources within a single machine. When multiple people can use the same physical facilities, efficiency is maximized. The operational versatility that virtualization provides is enticing more and more enterprises to use it.

Listed below are the six most common kinds of virtualization. When used, each of them influences a unique set of components.

  • Application virtualization separates applications from the underlying operating system (OS). Application virtualization encapsulates all application pieces and runs them independently of the OS. It signifies the running system doesn't have the app. It is hosted in a (virtual machine) VM on a distant server.
  • Data virtualization: It manages data. Without data standards, it retrieves, separates, manipulates, and delivers data. Accessing the data doesn't require its location or formatting. It gives applications a real-time, unified picture of all data. DV software reduces warehouse latency and offers on-demand integration, rapid analysis, real-time search, and reporting.
  • Desktop virtualization: It is a client-server model. It virtualizes desktop environments on a distant server. DV software helps with workstation load, staff onboarding, redundant process removal, disaster recovery, and more.
  • Network virtualization: All physical networking tools and resources are combined in network virtualization. It divides bandwidth into distinct channels. NV software generates a network tunnel. Admins can run VMs without reconfiguring each network. Bandwidth division permits real-time channel assignment to various systems.
  • Server Virtualization: Hardware-based virtualization divides a real server into numerous virtual servers running guest operating systems. Market Research Future predicts the Server Virtualization market will reach $9,907,87 Million by 2026. Virtualization reduces the requirement for real servers and hardware. It's a cost-cutting technology.
  • Storage virtualization: Multiple physical storage arrays are virtualized as a single, independent storage pool. The storage virtualization software collects and controls storage arrays for applications. VS provides flexibility and resource availability. You can manage this data virtualization and centralization centrally.

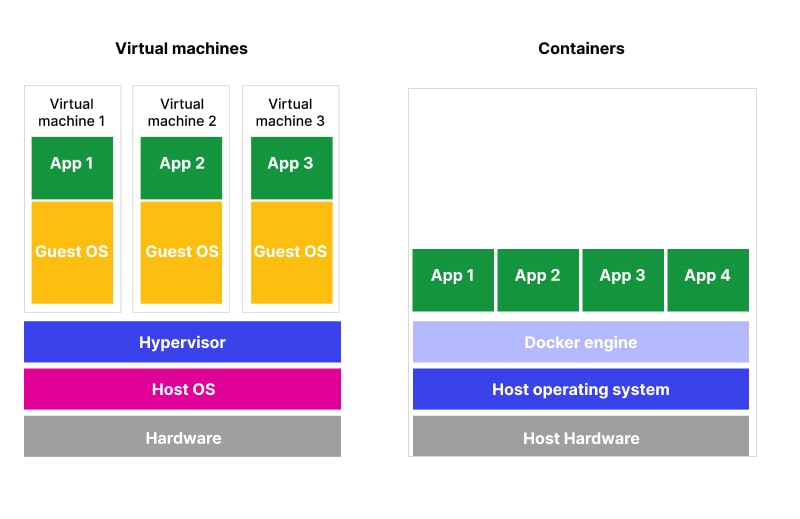

Virtual Machine vs. Containers

A container can be considered a digital computer to help you understand VM. A hypervisor is used to emulate physical hardware in conventional on-premises and cloud virtualization. Each virtual machine (VM) consists of a guest operating system, a hardware emulation of that OS, an application, and the libraries and dependencies required by that application.

Containers emulate the operating system rather than the hardware; therefore, the only things present in a container are the necessary software components. Since containers don't need a guest operating system, they're small and easy to move around.

Kubernetes and containers work nicely with cloud-native and microservices designs. While containers are most commonly associated with stateless applications, you can also use them for stateful services.

Because of their uniformity across laptops, the cloud, and on-premises IT, containers are widely used in hybrid cloud settings.

Setting Up a Virtual Machine

The virtualization platform determines the VM setup process. Many platforms offer wizards and other facilities to create and deploy VMs. An admin can create a VMware vSphere VM using a template, clone, or from scratch. The New Virtual Machine wizard in vSphere guides the user through building a new or cloned VM.

Red Hat Virtualization creates VMs differently. To install Linux VM, the user would:

  • Make a new VM,
  • Add a virtual disc,
  • Add VM network interface,
  • Install the target OS,
  • Register the VM with CDN and add subscriptions,
  • Install guest agents and drivers.

Before deploying VMs, users should check the virtualization platform's documentation.

VM Vendors

When deployed in a data centre, virtualization machine software enables the simultaneous operation of numerous operating systems on a single physical server. Hypervisors are a type of virtualization software that provide a sandbox for a guest OS and create a software-level simulation of the hardware. Using hypervisors, virtualization software makes it possible to run numerous servers on a single host computer.

Through the use of virtualization softwares vendors, fewer actual machines are required. As a result, server expenses are reduced due to higher rates of resource use. However, since Docker's release, containerization has become increasingly common, providing an alternative to server virtualization for businesses with only a single OS requirement. By eliminating the need for a hypervisor and allowing several containers to share a single installation of an OS while executing directly on the server's hardware, containerization is able to significantly outperform server virtualization technologies in terms of efficiency.

As such, we'd like to recommend the following five virtualization providers:

  • VMware Workstation Player / VMware Inc.

VMware Workstation Player, formerly Player Pro, is a hypervisor program. "Virtual Machine Isolation" in the app protects your host machine from viruses. Copy and paste between the guest and physical computer and optimize Virtual Machine memory.

  • Oracle/VirtualBox

Oracle VM VirtualBox is an open-source, cross-platform virtualization tool that runs multiple operating systems on one device. It allows remote workers to safely use Windows, macOS, and Linux apps, creating a large working space.

  • Parallels Desktop

Parallels Desktop 16 is the fastest way to run Windows apps on Mac. Virtual Machines support all Windows and Intel-based macOS versions since Windows 2000.

  • QEMU / Software Freedom Conservancy, Inc.

QEMU builds multiple hardware and device models by emulating the host machine's processor and runs Virtual Machines with different operating systems.

  • Virtualization platform Hyper-V

It creates, manages, and runs Virtual Machines like other apps. It also offers 'Live Migration' to move a Virtual Machine from one host to another without halting active applications.
