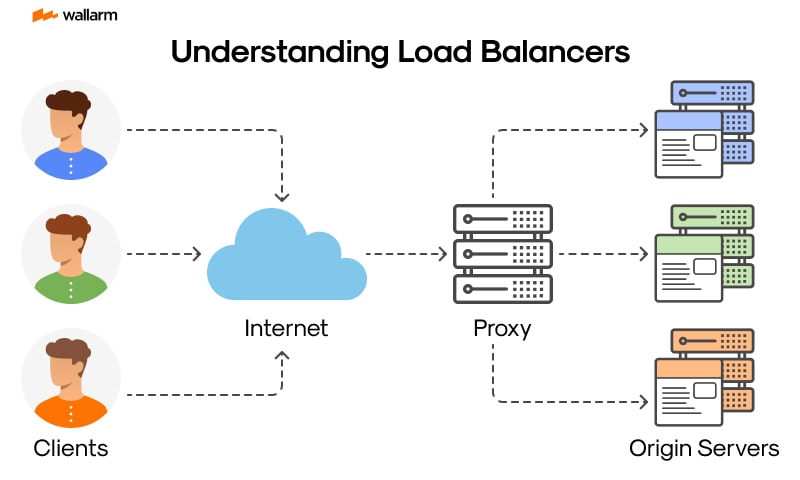

Understanding Load Balancers: What are they and why are they necessary?

Comprehensive Look into Load Harmonizing

The complexity of infrastructure systems grows as innovations in cloud technologies forge ahead. Among these, load harmonizing has surfaced as a crucial protective measure. Designed to maintain constant application operability and immediately adapt to fluctuating circumstances – particularly during high usage times – understanding the place of load harmonizers in the current IT frameworks cannot be overstated.

Unpacking the Fundamentals of Load Harmonizing

The concept behind load harmonizing is simple: it proportionately distributes network data or application requests across multiple servers. This strategy aims to guard against the risk of any single server buckling under an avalanche of requests, promoting equal sharing of tasks. Implementing this method immensely strengthens the dependability and robustness of business applications, systems, web platforms, data storage facilities, and an assortment of tech channels.

Understanding the workings of Load Harmonizers

Imagine a load harmonizer as a conscientious traffic overseer centered amidst your server network. It is responsible for steering each incoming user request to the most suitable server available. This process augments processing speed, boosts the usage of resources, inhibits server jamming from overuse, and assures top-notch performance metrics.

Load harmonizers come in two major types: those that are hardware-based and software-based. Each type comes with its own benefits and limitations. Hardware-based versions may provide unrivaled performance but tend to be costly and could lack the required flexibility. On the other hand, software-based harmonizers show greater flexibility and adaptability, making them a more attractive choice for organizations that favor scalability.

The Vital Role of Load Harmonizers

  1. Regulating Demands: Load harmonizers ensure that requests from applications or network data are equally shared across numerous servers, mitigating inefficiencies.
  2. Maintaining Performance & Providing Backup Options: By scattering requests over various servers, a load harmonizer reduces the chance of server failures. In the event of a server issue, the load harmonizer quickly redirects data to operational servers.
  3. Facilitating Scalability: An upswing in the use of your application and correlating traffic could necessitate additional servers, which load harmonizers can control with efficiency.
  4. Enhancement of Security: If required, load harmonizers can function as protection agents for your applications, managing SSL termination and warding off Distributed Denial-of-Service (DDoS) assaults.

In subsequent writings, we will delve deeper into two popular load harmonizers: Traefik and HAProxy. Our exploration will include their working principles, performance characteristics, security shields, and other relevant specifics. Pour over our forthcoming articles for a more in-depth understanding!

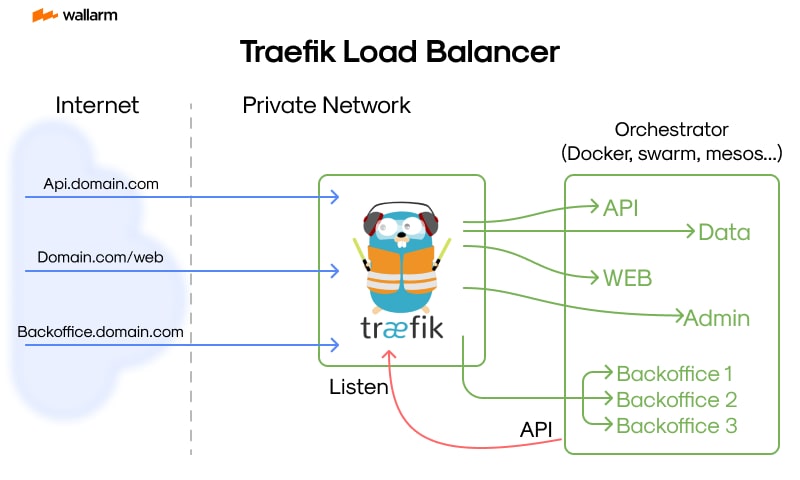

Deep Dive into Traefik Load Balancer

Traefik represents a novel approach to the management of HTTP reverse proxy functions and load balancing. It is thoughtfully assembled to simplify the configuration processes while consistently adapting to various settings, including multifaceted or hybrid structures. At its core, Traefik is a cloud-adoptive solution, specially formulated considering the requirements of contemporary, sporadically structured systems.

Dissecting the Framework of Traefik Load Balancer

The structure of Traefik is quite fundamental and rests on three core components: Entrypoints, Routers, and Services.

  1. Entrypoints act as the gateway into the world of Traefik, setting the tone for the locations Traefik uses to intercept requests.
  2. Routers play a pivotal role by bridging the gap between incoming requests and the corresponding services equipped to address them. They function based on a rule-set dictating which service is apt for a given request.
  3. Services refer to your applications encapsulated within servers responding to requests and serving responses.

Thanks to this setup, Traefik offers adaptability in managing a broad spectrum of circumstances.

Revolutionizing Configurations with Dynamism

Traefik shatters conventional load balancer norms with its game-changing dynamic configuration feature. While traditional systems require manual tweaking and restarting to implement changes, Traefik applies modifications by instinctively discovering and conforming to its operational surroundings.

Integrated Providers act as the backbone of this self-configuration process. They embody existing components of your tech stack (such as Docker, Kubernetes, AWS, and so on) which Traefik can connect to, in order to unravel services and tailor itself accordingly. To put it simply, introducing a new service to your Docker swarm leads Traefik to instantaneously find and begin directing requests to it with zero manual manipulation.

Diverse Load Balancing Techniques

Traefik accommodates a variety of internal Load Balancing mechanisms including:

  1. Round Robin: By default, it evenly splits requests across all functional services.
  2. Least Connection: This technique prioritizes sending requests to the service currently experiencing the least active connections.
  3. Weighted Round Robin: With this strategy, services receive weights and the division of requests depends on these allocations.

SSL/TLS Functionality

Traefik provides a refined SSL/TLS treatment by autonomously creating and renewing SSL/TLS certificates for your services utilizing Let's Encrypt, simplifying the process of enforcing HTTPS for service protection.

Monitoring and Tracing tools

Traefik equips you with exhaustive metrics and tracing insights effective for diagnosing issues or fine-tuning performance, and has built-in compatibility with prevalent monitoring platforms like Prometheus, Datadog, and Zipkin.

Middleware Capabilities

Traefik ushers in an array of middleware tools which can manipulate requests and responses in multiple ways, such as appending headers, retrying requests, or throttling requests. Consequently, it enables customizing service behavior sans any service-level changes.

Final Thoughts, Traefik emerges as a robust, adaptable, and user-friendly load balancer, tailor-made to cater to modern, distributed systems. It stands out for its dynamic self-configuration feature, support for multiple load balancing techniques, well-rounded SSL/TLS provisions, comprehensive metrics and tracing tools, and a flexible middleware function, positioning itself as an ideal solution for diverse settings.

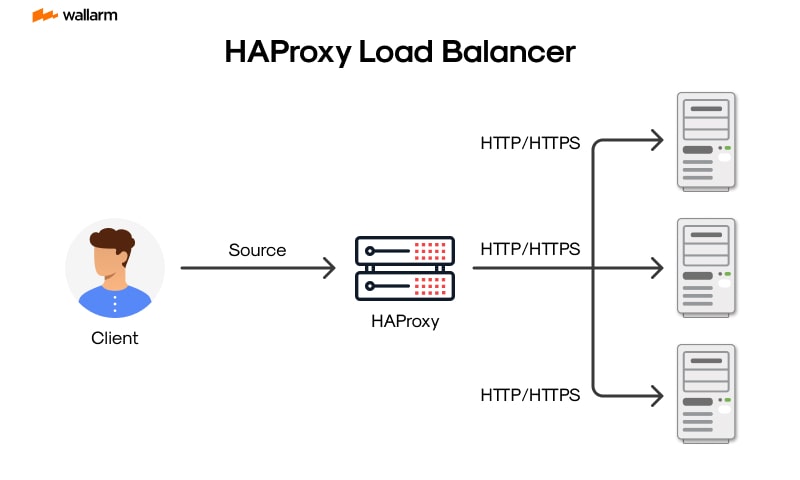

Becoming Acquainted with HAProxy Load Balancer

Discover How HAProxy Revolutionizes Your Open Source Ecosystem

HAProxy is a key protagonist in augmenting the execution and proxy functions of systems based on HTTP and TCP protocols. Its lightning speed, specialty service, and seamless integration with its environment, underscore this fact.

Peering into the Core Mechanics of HAProxy

Embedded in Level 7 of the OSI Model, often known as the application layer, HAProxy operates as an unparalleled interceptor, scrutinizing HTTP headers and URLs for data-backed decisions. Its advanced traffic governing methods allow the software to adeptly fuse judicious server selection with session detail persistence.

The foundation of HAProxy's functionality is its proficient handling of inbound workload, diligently dispersed across several servers. This equilibrium in workload dispersion substantively eases server burden, thereby improving efficiency and heightening the overall availability. HAProxy efficiently reroutes requests to an operational server in the event that a server becomes inaccessible.

The Blueprint of HAProxy

The nucleus of HAProxy is encapsulated in its event-driven framework, constructing the perfect setting for managing a multitude of simultaneous connections without burdening performance. Marshalled by the principle of single action, multiple threads, it delivers exceptional functions with marginal resource expenditure.

The skeleton of HAProxy consists of three essential components:

  1. Frontend: It operates as the launching pad for client requests, setting the specific IP addresses and connection nodes for incoming HAProxy links.
  2. Back-end: A gathering of servers where all client queries are routed by HAProxy. Every back-end server is assigned a distinct IP and port.
  3. ACLs (Access Control Lists) and Rules: These set up the conduct codes for managing inbound requests and the interaction with specific back-end servers of each request.

Employ this straightforward example of an HAProxy setup:


frontend  virtual-portal
    bind *:80
    global_backend hub-net

backend hub-net
    server node1 192.168.1.1:80 verify
    server node2 192.168.1.2:80 verify

In this scenario, HAProxy is programmed to scrutinize HTTP requests on port 80 and steer them toward either of the two back-end servers based on their operational status.

Flagship Features of HAProxy

HAProxy's superior standing as the go-to load distributor and proxy platform is dependent on numerous signature characteristics:

  • Sturdy Service: It possesses the inherent competence to detect server defects and deftly channel inquiries to an auxiliary server, ensuring uninterrupted application functionality.
  • SSL Offloading: HAProxy handles the heavy-duty work of encryption and decryption of SSL, allowing the servers to focus on algorithmic computations.
  • Session Persistence: It ensures that a user's request is constantly guided to a specific server, which plays a critical role in preserving session data fidelity.
  • Server Health Monitors: HAProxy executes regular checks on back-end servers to catch any snags.
  • Traffic Management: It strategically governs the surge of individual requests to back-end servers, minimizing potential traffic congestion.
  • Detailed Logging: Comprehensive log repositories provided by HAProxy are vital for troubleshooting, performance augmentation, and conducting security audits.

By exhibiting extraordinary adaptability, multifunctionality, and a suite of features, HAProxy has staked its claim as a critical traffic orchestrator, augmenting application agility and accessibility. Its customizable configuration options have made it a favorite among a wide array of organizations.

Traefik vs HAProxy: An Introduction

Load Regulation Masters: An In-depth Examination of Traefik and HAProxy

Diving into the universe of load balancing, two esteemed names arise: Traefik and HAProxy, each boasting a multitude of competent abilities, making each uniquely advantageous. This article will dissect and compare these significant load balancers, illuminating their respective features, quality, and core disparities.

Traefik: The Pioneering Maestro of Network Passage

Excavating its distinctive corner in the evolving space of modern technology, Traefik shines as a trailblazer within the open-source landscape. It excels specifically as a network gateway and balance provider—particularly in the microservice architecture arena. Its core strength lies in managing unpredictable, frequently metamorphosing settings, making it unparalleled while navigating volatile service alterations.

Its primary highlight is its capability for autonomous service recognition and dynamic policy management. Simply put, Traefik harnesses its adaptability to the changing service landscape by adjusting its settings as and when a service in its domain is introduced or withdrawn, negating any manual tweaks or interventions.

Moreover, Traefik effortlessly melds with widely hailed orchestrators including Kubernetes, Docker, and Rancher. It’s like an efficient task integrator for developers operating within container technologies.


# An inside look into Traefik's YAML-centric configuration
entryPoints:
  web:
    address: ":80"
providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    exposedByDefault: false

HAProxy: The Reliable Machinist of Load Supervision

Contrastingly, standing on the firm ground of reliability, HAProxy marks its territory as a dependable mainstream open-source choice, performing rigorously as a proxy and load balancer for TCP and HTTP applications. Known for its swift responsivity and steadiness, it consistently emerges as the go-to choice for high-volume web platforms.

The essence of HAProxy lies in its intricate customizability and robustness. It provides detailed control to administrators in traffic management, offering the ability to tailor complex load balance determinations based on various criteria, fragmenting its application based on server load, the number of connections, and URL patterns.

However, unlike Traefik, HAProxy is not destined for self-driven service recognition and requires industrious manual configuration. This assures an unsurpassed level of control and certainty to its user base.


# A peek into HAProxy's configuration scheme
frontend http_front
   bind *:80
   default_backend http_back

backend http_back
   balance roundrobin
   server server1 192.168.1.1:80 check
   server server2 192.168.1.2:80 check

Contrasting Traefik and HAProxy: A Preliminary Examination

Although being proficient load balancers, Traefik and HAProxy serve distinctive purposes. Traefik triumphs in dynamic cloud-centric environments that necessitate frequent scalability. Its inherent service recognition and configuration administration are well-suited to such circumstances.

Conversely, the strength of HAProxy lies in scenarios that demand stability over volatility. The prerequisite for manual configuration, coupled with exhaustive control over traffic direction, makes it a steadfast choice for high-traffic digital platforms and applications.

PerspectiveTraefikHAProxy
Self-Sufficient Service DetectionYesNo
Manual DeploymentNoYes
Synchronization with Orchestration ToolsYesModerate
Granular Traffic ControlModerateYes

Subsequent segments will delve deeper into the deployment, structural setup, characteristic features, abilities, and the security aspects of Traefik and HAProxy. This thorough examination is aimed at equipping you with a broad-based understanding of these load balancers, enabling you to make decisions based on precise project requirements and contexts.

Installation Process: Setting up Traefik Load Balancer

The configuration of Traefik Load Balancer involves a set of straightforward procedures. Prior to initiating the setup, it's crucial to grasp the requirements needed.

Obligatory Setup Requirements

Prior to advancing towards the setup process, make sure the following components are in place:

  1. Linux-Hosted Server: Given that Traefik operates solely as a Linux-specific load balancer, having a Linux server, either physical or virtual, is indispensable.
  2. Docker: As Traefik integrates effortlessly with Docker, its presence on your server is non-negotiable. Docker can be procured firsthand from its certified online source.
  3. Working understanding of Linux prompts: As interaction with the command line is inevitable for Traefik’s installation and adjustment, an elementary grasp of Linux directives becomes imperative.

Stepwise Direction for Setup

Once the obligatory criteria are secured, start with the installation proceedings. Here’s a systematic direction of procedures to setup Traefik Load Balancer:

1. Procure Traefik: The primary directive involves acquiring the most recent edition of Traefik from its certified online source. This can be achieved by weilding the wget directive in Linux, such as:

 wget https://github.com/traefik/traefik/releases/download/v2.3.0/traefik_v2.3.0_linux_amd64.tar.gz

2. Unpack the Compressed File: Post download, decompressing the tarball is required. Achieve this through the tar command in Linux, like so:


tar -xvzf traefik_v2.3.0_linux_amd64.tar.gz

3. Relocate the Traefik Executable: Decompressing delivers a binary file named 'traefik'. This file needs to be transferred to the /usr/local/bin directory, done by applying the mv command in Linux:


mv traefik /usr/local/bin/

4. Attach Execution Rights: The subsequent move demands attaching the execution rights to the 'traefik' binary. This can be achieved via the chmod command:


chmod +x /usr/local/bin/traefik

5. Generate a Settings File: Traefik employs a settings file for its operations. Generation of this file in the /etc/traefik directory is achieved via the touch command:


touch /etc/traefik/traefik.toml

6. Modify the Settings File: Post creation, the settings file should be tailored to fit your needs, achieved via text-editing tools such as nano or vim:


nano /etc/traefik/traefik.toml

7. Activate Traefik: The concluding step in the installation process involves activating Traefik via this command:


traefik --configFile=/etc/traefik/traefik.toml

Congratulations! You've set up Traefik Load Balancer on your Linux server.

Post-Setup Verifications

It's imperative to authenticate that Traefik has been correctly established post-installation. Validate Traefik's operational status by examining the service health. If functional, you’re expected to see an output mirroring this:


● traefik.service - Traefik
   Loaded: loaded (/etc/systemd/system/traefik.service; enabled; vendor preset: enabled)
   Active: active (running) since Tue 2021-09-14 10:30:00 UTC; 1min 20s ago
 Main PID: 12345 (traefik)
    Tasks: 10
   Memory: 30.3M
      CPU: 1.030s
   CGroup: /system.slice/traefik.service
           └─12345 /usr/local/bin/traefik --configFile=/etc/traefik/traefik.toml

This displays that Traefik is in operation and equipped to calibrate your network traffic.

To summarize, Traefik Load Balancer configuration involves sequences of obtaining the software, decompressing the downloaded files, relocating the executable, granting execution rights, setting up and modifying a settings file, and lastly initiating the service. These guidelines will assist in promptly establishing your Traefik Load Balancer.

Installation Guide: Getting Started with HAProxy Load Balancer

If you are seeking a way to efficiently set up the HAProxy Load Balancer, you're at the right place. This article will share a clear, step-by-step breakdown of installing and configuring HAProxy Load Balancer.

Confirming System Compatibility

Your initial task is ascertaining the proper functioning of HAProxy with your device. It's worthwhile to mention that HAProxy accommodates a range of Unix-like platforms such as Linux, FreeBSD, and Solaris. In case you're a Windows user, you would require a Cygwin ambience.

Procurement of HAProxy

It's now time to take possession of HAProxy software. The finest course of action is to have the most recent stable variant of the software, easily accessible on their home page.


wget http://www.haproxy.org/download/2.0/src/haproxy-2.0.13.tar.gz

Unveiling the Procured Package

Upon successful download of the HAProxy tarball, it's time to reveal its contents. We achieve this by utilizing the tar instruction as demonstrated below:


tar xzvf haproxy-2.0.13.tar.gz

HAProxy Installation

Ready to place HAProxy on your device? Also, travel to the recently revealed directory and initiate the software compound. The make and install instructions will guide you through the process.


cd haproxy-2.0.13
make TARGET=linux-glibc
sudo make install

HAProxy Set-Up

Having installed HAProxy, it's time to tailor it to your needs. The config file for HAProxy resides at /usr/local/etc/haproxy/haproxy.cfg. Simply utilize a text editor to modify this file.


sudo nano /usr/local/etc/haproxy/haproxy.cfg

Adhere to the config file and signify the client-facing and processing servers. In essence, the client-facing server works as an access point for client connections to your app, while the processing servers take care of the actual processing of client demands.

Activation of HAProxy

After the requisite configurations, it's time to kick-start HAProxy. Use the command indicated below:


sudo /usr/local/sbin/haproxy -f /usr/local/etc/haproxy/haproxy.cfg

Inspecting the Installation

Wondering how to cheek if your HAProxy is functioning as expected? Simply use the command-line presented below:


ps -ef | grep haproxy

If HAProxy is effectively operational, you will notice it appear as part of the result.

Following the stepwise approach outlined above, your HAProxy load balancer should be up, prepared to efficiently distribute network or app traffic amongst diverse servers.

How Traefik Load Balancer Works: An In-depth Analysis

The focus of this text is the Traefik Load Balancer which serves as a rather ingenious contemporary HTTP reverse proxy and load balancer. It eases the process of application routing and is dynamic and open-source in nature, being able to integrate with multiple backends including Docker, Kubernetes, Swarm, among others. This text offers an in-depth exploration into the operations of the Traefik Load Balancer.

The Principal Operation

The key role of Traefik is to correctly direct every incoming network transaction to the relevant services taking into consideration their specific setup. This is achieved by Traefik maintaining a constant watch on your service registry/orchestrator API, leading to real-time route creation and thus ensuring a seamless connection for your microservices to the external world, with no need for extra configurations.

Spontaneous Configuration Recognition

Traefik shines in its capacity to spontaneously identify and comprehend configurations. As soon as a service is deployed, Traefik senses it and promptly constructs a route for it. This task is accomplished through providers, the existing components of infrastructure that Traefik is linked to and keeps monitoring for alterations.


providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    exposedByDefault: false

In this specific instance, Docker has been chosen as the provider for Traefik which will keep track of Docker socket alterations. The exposedByDefault: false setting ensures that only those containers are exposed which have been specifically set up for discovery by Traefik.

Methods for Load Balancing

Traefik has support for various load balancing methods including Round Robin and Weighted Round Robin. The Round Robin method, as implied by the name, forwards requests in a circular fashion, guaranteeing an equitable division of the load among services. On the contrary, Weighted Round Robin enables you to distribute specific weights to your services, leading to request distribution being controlled based on these weights.


services:
  my-service:
    loadBalancer:
      servers:
        - url: "http://example.com"
        - url: "http://another.example.com"
      method: "wrr"

In the set-up above, Traefik will divide the load between the two servers utilizing the Weighted Round Robin method.

Middleware Component

Traefik’s Middleware provides the means to make adjustments to the request processing chain. These adjustments can vary from modifying the request or the response, performing redirections, adding or removing headers, among other tasks. Middleware chains can be formed and affixed to routers.


http:
  middlewares:
    test-redirectregex:
      redirectRegex:
        regex: "^http://localhost/(.*)"
        replacement: "http://my.domain/$1"

The code above depicts a scenario where a middleware named test-redirectregex is defined, which reroutes all requests from localhost to my.domain.

Checks for System Health and Measurement Metrics

Traefik also incorporates health checks, allowing it to ascertain the status of your services. If a service is deemed unfit by a health check, Traefik halts directing traffic to it until it resumes normal functioning. Moreover, Traefik offers real-time metrics to keep track of the state of your services.

In summation, Traefik's operational adaptation to alterations in your infrastructure make it an effective load balancer. Its capabilities encompass automatic configuration discovery, choice of multiple load balancing strategies, middleware, and health checks, forming a resilient alternative for modern application deployment approaches.

Deciphering the Operation of HAProxy Load Balancer

HAProxy, also known as HA, is a robust open-source software meticulously built for traffic management and task allocation. The integration of this malleable tool profoundly augments server functions, thus promoting system reliability, user-focused results, and enhanced operational efficiency.

An In-depth Look into HAProxy's Structure

Far from typical load balancers, the architecture of HAProxy sets it apart. Its event-based framework allows it to exploit numerous parallel connections unrestrictedly, thereby boosting productivity. This software maintains unwavering performance even during periods of pronounced data surge.

Essentially, HAProxy relies on two essential components - the front end (the user interface) and the back end (server-facing platform). The front end principally governs user connections and orchestrates their rerouting to the suitable back end, while the back end consists of various servers designed to accommodate client requisitions.

Load Balancing Techniques of HAProxy

HAProxy offers an assorted range of load balancing methods that can be customized to address specific needs and circumstances. The following strategies are frequently employed:

  1. Rotational Approach: This traditional process guarantees proportional allocation of requests throughout all servers.
  2. Least Active: This comes in handy with servers having diverse processing capabilities; new connections are diverted to the server with the least active tasks.
  3. Session Persistence: Under this, clients regularly engage with the same server, given its availability. This helps maintain uninterrupted session flow.
  4. URL-Based: This technique assigns requests to servers on the basis of URL hash values, which is particularly beneficial for hosting static content.

Maneuvering Through HAProxy

HAProxy's control center is its configuration file, which offers a detailed snapshot of the load balancer's functions. It contains different segments such as 'global', 'defaults', 'front end', 'back end' and 'listen', with each corresponding to a particular set of commands.

The 'global' section accommodates commands that function universally, like deciding the maximum permissible connections. On the other hand, the 'defaults' section represents settings applicable to all parts unless expressly modified.

Below is a typical HAProxy configuration:


global
    write /dev/write    local0
    maximumconn 4096
    user haproxy
    group haproxy

defaults
    mode http
    delay connect 5000ms
    delay client 50000ms
    delay server 50000ms

frontend http_front
   bind *:80
   default_backend http_back

backend http_back
   balance roundrobin
   server node1 10.0.0.1:80 evaluate
   server node2 10.0.0.2:80 evaluate

This configuration prepares HAProxy to handle HTTP requests on port 80 and redirects them to two distinct servers, node1 and node2, utilizing the Rotational Approach.

Boosting Efficiency with HAProxy

Proper administration is crucial for the successful functioning of a load balancer. Thus, HAProxy features an integrated statistics module providing real-time analysis of its performance, including metrics related to the load balancer and the back-end server. This evaluation encompasses aspects like total active connections, connection inconsistencies, and response timings.

In essence, HAProxy emerges as a load balancer known for its strength, adaptability, and rich featureset. Its formidable operational structure, flexible load-balancing techniques, and performance evaluation capacities make it a popular choice among diverse organizations.

Configuration of Traefik Load Balancer: A Comprehensive Guide

While configuring Traefik as the chosen load balancer, deploying a systematic strategy enhances both functionality and security. This article presents an outlined procedure for customizing your Traefik load balancer based on the demands of your projects.

Decoding Traefik Configuration File

Explore the traefik.toml which serves as the blueprint for your load balancer's operations. Comprising the Traefik's working specifics, this document utilizes the simplicity of TOML (Tom's Obvious, Minimal Language), thereby facilitating ease of understanding and composition.

For a primary understanding, consider the following Traefik configuration schematic:


[entryPoints]
  [entryPoints.http]
  address = ":80"

[providers]
  [providers.file]
    filename = "/path/to/your/dynamic/conf.toml"

Here, an entry point on port 80 is declared for Traefik to receive incoming links with a file provider directed towards a unique TOML file encapsulating the adaptive setting.

Architecting Entry Points

Entry points signify the network ports enabling Traefik to establish incoming links. These ports serve as the load balancer's inputs, where different protocols demand various entry points. For instance, HTTP traffic might be catered on port 80 while HTTPS traffic on port 443. Configure your traefik.toml file as:


[entryPoints]
  [entryPoints.http]
  address = ":80"
  [entryPoints.https]
  address = ":443"

Designing Providers

Providers channel the resources for your adaptive setup. Traefik accommodates several provider types, including Docker, Kubernetes, and file. For testing and developmental environments, the file provider, due to its straightforward configuration mechanism, is the go-to choice.

The following outlines the integration of a file provider:


[providers]
  [providers.file]
    filename = "/path/to/your/dynamic/conf.toml"

In this context, the file provider points to a TOML file encapsulating the adjustable setup extending from routers and services to middleware.

Sculpting Routers, Services, and Middleware

Routers, services, and middleware form the core of your adaptive setup. Routers strategically direct incoming requests, services process these requests, and middleware alters them as required.

Note the example below on how to outline a router, service, and middleware in your adaptive setup document:


[http]
  [http.routers]
    [http.routers.my-router]
      rule = "Host(`mydomain.com`)"
      service = "my-service"
      middlewares = ["my-middleware"]

  [http.services]
    [http.services.my-service.loadBalancer]
      [[http.services.my-service.loadBalancer.servers]]
        url = "http://myserver.com"

  [http.middlewares]
    [http.middlewares.my-middleware.redirectScheme]
      scheme = "https"

In this setup, my-router directs requests for mydomain.com to the load balancer denoted as my-service while implementing the middleware labeled my-middleware. Simultaneously, the service redirects requests to myserver.com. Lastly, the middleware employs HTTPS for all HTTP request redirections, thus rendering enhanced security.

Recap

Carving out a Traefik load balancer configuration may seem intricate, but it offers the flexibility of customization. Comprehending the configuration document, its essential constituents, and its overall structure is key for effective customization. Conclusive understanding is obtained through continuous practice, and the Traefik documentation can be referred for further aid.

Orientation on HAProxy Load Balancer Configuration

As an extremely competent and versatile network management tool available in the open-source community, HAProxy sets the golden standard in controlling network flow. The journey to mastering the configuration of your HAProxy Load Balancer may appear intimidating initially, but grasping its fundamental components significantly eases the process. This comprehensive manual demonstrates how to adaptively design a load management infrastructure that meets your requirements.

Navigation of the Main Configuration File

Acting as the pulse of HAProxy's operational efficiencies, the 'haproxy.cfg' file resides in the '/etc/haproxy' directory. This precious document bears all the strategic instructions that decide the distribution of network load. It is chiefly broken down into five categories:

  1. Global: This dedicated environment harbors parameters in action across the system, ensuring the regulation of the vital HAProxy instance, including constraining system resources and overseeing log activity.
  2. Defaults: This section establishes the generalized settings cascade for all recognized proxies, bridging any gaps left by undecided settings within a standalone proxy.
  3. Frontend: This portion curates the entry gate for incoming network traffic.
  4. Backend: This part signifies the destination of the HAProxy traffic.
  5. Listen: This section intertwines the features of frontend and backend to enable more seamless setups.

Assembling your Global and Defaults Sectors

The setup of your HAProxy starts with methodical preparations of 'global' and 'defaults' sections. A blueprint would look like this:


global
    log /dev/log    local0
    log /dev/log    local1 notice
    chroot /var/lib/haproxy
    stats socket /run/haproxy/admin.sock mode 660 level admin
    stats timeout 30s
    user haproxy
    group haproxy
    daemon

defaults
    log     global
    mode    http
    option  httplog
    option  dontlognull
    timeout connect 5000
    timeout client  50000
    timeout server  50000

In crafting the 'global' section, you're curating log settings, stipulating HAProxy's user and group designations, and thriving in daemon mode for heightened performance. On the other hand, the 'defaults' part is geared towards setting the mode to HTTP, supervising HTTP logging, and regulating timeout periods.

Shaping your Frontend and Backend Segments

Strengthening your setup further, it's essential to define traffic control strategies. Here's a helpful illustration:


frontend http_front
    bind *:80
    default_backend http_back

backend http_back
    balance roundrobin
    server server1 192.168.1.2:80 check
    server server2 192.168.1.3:80 check

In the 'frontend' segment here, it's configured to interact with all interfaces through port 80 and direct all traffic towards the backend 'http_back'. The 'backend' section cleverly employs a rotation strategy to distribute traffic equitably.

Examining Advanced Configuration Choices

With an extensive array of refined configuration choices, HAProxy offers several tailored adjustments to cater to unique network demands. Distinct options extend to:

  • SSL Termination: HAProxy can shoulder the responsibility of handling SSL encryption and decryption, lightening the load on backend servers.
  • Session Persistence: HAProxy can guarantee the uninterrupted flow of client sessions by directing requests from a given client to a particular server, aiding applications that need a stable state across multiple requests.
  • Health Checks: HAProxy can perform regular health audits on backend servers, cutting out traffic flow to servers showing signs of irregularities.

Overcoming the complexity of the initial HAProxy Load Balancer setup reveals its rich adaptability. It's essential to develop an understanding of the main configuration file's layout and the specific role of each section to tailor HAProxy to fulfill your distinct network traffic management demand.

Exploring Features: The Capabilities of Traefik Load Balancer

Within the sphere of HTTP reverse gateways and traffic distributors, Traefik champions the field with its avant-garde functionality and innovative offerings. Presenting itself as an open-source provision, it simplifies the task of guiding your applications towards appropriate servers.

Dynamic Configuration Adaptations

A standout feature of Traefik is its dynamic configuration adaptations. Unlike traditional traffic managers requiring manual setup and system restarts for any modifications, Traefik intuitively manages and applies configurations in real-time. With the expansion of your application's scope, Traefik promptly adapts, expertly managing the flow of traffic.

Middleware Provisions

Traefik's middleware is a versatile tool, providing users the power to modify request handling based on individual requirements. This includes prefix management, header manipulation, or request rerouting - this tool becomes your guide. It offers precise control over request handling, thereby making the task of sustaining and upgrading your applications less complex.

Uncovering Services

Backed by service detection components such as Docker, Kubernetes, Rancher, and other such platforms, Traefik possesses the capability to identify and direct traffic towards services as they are provisioned or decommissioned within your setup. This eliminates the need for manual setup, ensuring your applications remain consistently reachable.

Balance in Request Dispersal

One of Traefik's fundamental strengths as a traffic distributor is its competency in evenly dispensing requests across an array of servers. This contributes to maximizing resource consumption, enhancing data movement, reducing response latency, and avoiding system overload. There are a variety of load balancing algorithms to choose from, such as Round Robin, Least Connections, and IP Hash, each tailored towards your specific needs.

SSL/TLS Proficiency

Traefik's built-in SSL/TLS capabilities, including automatic certificate issuance and renewal through Let's Encrypt, further simplifies the process of securing your applications and ensuring data remains encrypted.

Performance Oversight

Traefik allows access to comprehensive performance metrics and tracing data to monitor your application's performance and identify potential problems. It integrates smoothly with popular monitoring applications such as Prometheus, Datadog, and Zipkin, thereby seamlessly integrating into your existing oversight system.

Uninterrupted Operation

Traefik proves beneficial in high-availability environments, promising uninterrupted access to your applications even in situations of server downtime. This feature is indispensable for maintaining service reliability and ensuring consistent service delivery to users.

In conclusion, Traefik epitomizes a versatile traffic manager, abundant in flexibility and accuracy. The combination of its dynamic configuration adaptations, middleware provisions, service detection abilities, load balancing competence, SSL/TLS proficiencies, performance oversight capabilities, and fail-safe provisions make it a formidable instrument for managing and enhancing your applications.

Diving into the Features of HAProxy Load Balancer

Harnessing HAProxy for Optimum Efficacy and Expandability in Load Distribution Tasks

As one of the stand-out entities in the broad panorama of open-source tools designed for controlling load distribution, HAProxy leads the pack. Famed for its impressive workload distribution prowess, let's delve into its distinct characteristics that further cement its reputation as the premier alternative amongst load balancing appliances.

Unvarying Efficacy and Superior Expandability

The allure of HAProxy resides in its unwavering efficacy teamed with unmatched expandability, an ideal blend for platforms handling significant user traffic levels. Functioning within a reaction-driven setting, it adeptly governs multiple coinciding connections, simultaneously controlling CPU and memory utilization, thereby boosting the overall data throughput.

In addition, it boasts multi-threading and multi-process features, which empower HAProxy to proficiently cope with unexpected surges in network traffic. Its harmonious coordination with a wide array of applications and services allows HAProxy to exhibit a fluid response to complex arrangements.

Broad Spectrum of Workload Distribution Strategies

HAProxy serves up the advantage of choosing from a broad array of workload distribution strategies—such as round-robin, least-connections, and source—tailored to meet specific needs.

The round-robin approach ensures equitable distribution of incoming requests across all servers. In contrast, the least-connections tactic channels traffic predominantly to the server bearing the least active connections. The source method guarantees that a user consistently liaises with a particular server based on their distinctive IP address.

Routine Automated Checks and Session Stability

HAProxy effectuates routine automated assessments of backend servers to confirm their uninterrupted functional condition. In scenarios when a server becomes dormant, HAProxy independently reroutes traffic to functional servers, ensuring services remain uninterrupted.

Another crucial characteristic of HAProxy is session stability, suggesting that a client continually collaborates with the identical server throughout a session. This property is critical when user identification or status requires consistent persistence.

SSL Decryption Capability and HTTP/2 Compliance

HAProxy's SSL decryption feature implies that the responsibility of SSL encryption and decryption is moved from the backend servers to the load balancer. This transition drastically lightens computational burden, thereby amplifying server efficiency.

Furthermore, HAProxy is compliant with HTTP/2, a notable advancement from the older HTTP/1.1. HTTP/2 introduces numerous enhancements, including header compression, multiplexing, and server push, considerably bolstering web application performance.

High Adaptability and In-depth Supervision

HAProxy's versatility allows for the refinement of its functions to meet precise specifications. The configuration file encompasses numerous directives beneficial for traffic governance, health check management, and adjustment of workload distribution algorithms.

Additionally, it presents comprehensive metrics and logs, equipping users with resources to assess efficiency and promptly rectify emerging issues. Users can access these metrics via HAProxy's in-built web interface or export them to an external monitoring tool for a more thorough examination.

To summarize, the extensive capabilities of HAProxy, coupled with its demonstrated efficacy and expandability, render it a versatile tool suited for workload distribution across diverse applications. Regardless of whether it's necessary for a high-traffic web architecture or a complex microservices schematic, HAProxy showcases unwavering dependability and versatility.

Performance: Evaluating Traefik Load Balancer

Performance constitutes a significant factor in the functionality of an application delivery controller such as Traefik, with a primary focus on its efficiency, expedience, and dependability.

Traefik Application Delivery Controller's Efficiency Evaluated

Efficiency is a primary assessment criterion for a controller such as Traefik. Its superiority, in this case, lies primarily in its ability to configure dynamically. In contrast with conventional load balancers which necessitate manual setup and maintenance, Traefik autonomously identifies and administers services along with their settings. This curtails administrative investment and turbocharges load-response efficacy.

Appraising Speed and Response Rate of Traefik

Instantaneous response and high-speed processing are essential for guaranteeing a smooth user interaction. Under extensive user demand, Traefik assures minimal delays by virtue of its event-engaged structure, capable of juggling numerous connections concurrently devoid of diminishing its high function.

Below mentioned comparison table portray the essence of its capacity:

Performance IndexTraefik Application Delivery Controller
DelayMinimal
Data Processing SpeedOptimal
Connection AdministrationSuperb

Assessing Reliability and Consistency of Traefik

Uninterrupted service and consistency serve as crucial parameters while gauging an application delivery controller like Traefik. It vouches for non-stop service availability owing to its formidable failover protocols. Traefik autonomously steers the traffic towards undamaged services incase any service falters, promising unbroken service availability.

Various Algorithms Supported by Traefik for Load Balancing

Traefik provides support for multiple algorithms such as rotating sequence, smallest link load, and IP-hash technique. These algorithms ensure meticulous dispense of cyber traffic to assorted servers, maximizing resource utilization and boosting performance.

Here’s a snapshot of these algorithms:

  • Rotating Sequence: Client enquires are evenly allocated across the entire server array, proving effective when servers possess equable capacities.
  • Smallest Link Load: Routes clients' inquiries to the server with minimal engaged connections, proving advantageous when servers possess diverse capacities.
  • IP-hash technique: Redirects client inquiries based on the clients IP index, making it advantageous for sustaining sessions.

Traefik's Performance Under Elevated Traffic

Despite significant user demand, Traefik's performance remains unchanged courtesy of its non-blocking structure and efficient connection administration. Sudden traffic surges do not impinge upon its performance.

In a nutshell, Traefik impresses in terms of efficiency, expedience, and dependability. Its spontaneous setup, event-induced architecture, sturdy failover policies, and support for various load-balancing algorithms amplify its impressive performance characteristics.

Performance Check: Analyzing HAProxy Load Balancer

Contemplate upon the HAProxy Load Equalizer, an influential entity in the realm of traffic management. Its extraordinary performance statistics differentiate it from the rest.

HAProxy Load Equalizer's Stellar Functions

The unique features that set HAProxy Load Equalizer apart are mainly its ability to handle dense traffic efficiently, while surprisingly using minimal computational resources. This feature is brought to life because of its inventive approach to managing connections, a shift from traditional practices.

Imagine a server managing 10,000 concurrent connections. Regular systems devote a separate thread to every connection, leading to excessive CPU and memory usage. However, HAProxy skillfully navigates all these parallel connections using one thread only, consequently lowering the strain on computational resources and enhancing the overall performance.

Super-Fast Data Processing With The HAProxy Load Equalizer

HAProxy Load Equalizer is appreciated for its high-speed data processing. It can handle thousands of data requests within just a few moments, while maintaining minimal lag times. Its quick response is attributable to intelligent balancing tactics and well-organized SSL processing distribution to specialized hardware.

Here is a basic table showcasing the splendid speed of the HAProxy:

Controlled RequestsMean Response Time
1,0000.1 milliseconds
10,0000.2 milliseconds
100,0000.3 milliseconds

The table indicates that despite the surge in the number of managed requests, the mean response time is still fantastically low.

Unyielding Performance by HAProxy

Reliable control is a vital trait of any high-efficiency system. Here also, the HAProxy Load Equalizer outperforms. It comes with several safety nets like continual health checks, flawless traffic redirection and session consistency.

HAProxy's health inspections constantly oversee the functionalities of backend servers, promptly identifying and excluding any unresponsive ones. If a server encounters any glitch, HAProxy's traffic redirection system maintains flow by steering it towards a functional server. Session consistency preserves session history, allowing sequential commands from a user to reach the same server, thereby shielding applications dependent on previous interactions.

Stress Test Results

To fully comprehend the HAProxy Load Equalizer's adept capabilities, one must look at the commendable results during stress tests. These assessments emphasized that it can gracefully manage over 2 million synchronous connections and effectively control over 100,000 HTTP requests per second.

The stress test was executed with this specific configuration:


independent
    maxconn 2000000
basic variables
    version http
    timeout to connect 5000ms
    timeout client side 50000ms
    timeout server side 50000ms
person-associated
    join *:80
    alternative servers

underlying servers
    selector roundrobin
    node1 192.168.1.1:80 maxconn 100000
    node2 192.168.1.2:80 maxconn 100000

The maxconn parameter was set at 2 million globally, and 100,000 individually for each underlying server during the test. This displayed HAProxy's potential to handle vast amounts of traffic while maintaining resource efficiency.

In conclusion, the HAProxy Load Equalizer makes an outstanding impression with its reigning efficiency in traffic management, swift response, and superior reliability traits. This technology handling dense traffic with limited resources, quick data processing, and impressive reliability aspects proves itself a pioneer in load equalization technology.

Traefik vs HAProxy: Security Comparison

In the sphere of load casting devices, fortifying their operations remains a top consideration. The reason being, these entities control the flow of network information, making them prime targets for vulnerabilities. Hence, the need to gain insights into how security is managed by two widely used balancers - Traefik and HAProxy.

Security Implementations in Traefik

Constructed as a contemporary HTTP reverse proxy and load casting entity, Traefik is designed with paramount attention to security. Several measures are put in place to shield your applications and information.

  1. Auto-Enablement of HTTPS: Traefik takes charge of creating and managing SSL/TLS credentials for your programs via Let's Encrypt. This functionality guarantees secure, encrypted interactions between your customers and your offerings.
  2. Conversion of HTTP to HTTPS: All incoming HTTP traffic is automatically rerouted to its HTTPS equivalent by Traefik, ensuring only secure connections to your solutions.
  3. Selective IP Allowing: With Traefik, traffic from specified IP addresses can be permitted, creating another layer of protection.
  4. Elementary Authentication: Basic HTTP verification is supported by Traefik to safeguard your applications from unwarranted access.
  5. Middleware Insertion: To bolster security, Traefik allows the inclusion of additional measures such as rate boundaries, circuit halters, and more through its middleware.

Security Implementations in HAProxy

Conversely, HAProxy, a known TCP/HTTP load distributor that consistently performs well, also provides numerous security enhancements.

  1. SSL/TLS End Point: HAProxy has the capability to terminate SSL/TLS connections, lessening the computational load of encryption and decryption off your application servers.
  2. Access Control Lists (ACLs): Through ACLs, HAProxy empowers you to manage client access to your applications based on different criteria, be it IP address, URL, or HTTP headers.
  3. Stickiness Tables: These tables track client activity in HAProxy, and can block clients who make numerous requests in a short timespan, aiding in the prevention of DDoS attacks.
  4. HTTP Request and Response Alteration: HTTP requests and responses can be rewritten by HAProxy, aiding in the protection of sensitive client information.
  5. Secure Socket Layer (SSL) Relief: HAProxy can process SSL encryption and decryption, which offloads this task from your apps' servers.

Traefik vs HAProxy: A Security Showdown

A side-by-side analysis of the security functions provided by Traefik and HAProxy highlights a robust security system in both. However, minor differences do exist.

FeatureTraefikHAProxy
Instant HTTPSYesNo
HTTP-to-HTTPS RedirectYesYes
IP FilteringYesYes (through ACLs)
Primary VerificationYesYes
Middleware AdditionYesNo
SSL/TLS ConclusionYesYes
Access via ACLsNoYes
Stickiness TablesNoYes
HTTP AlterationsNoYes
SSL ReliefNoYes

Traefik excels with its instant HTTPS and middleware addition capabilities, while HAProxy offers a subtle control over access via ACLs, stickiness tables, and HTTP alterations.

In conclusion, both Traefik and HAProxy furnish stout security measures. The one you opt for ultimately hinges on your precise necessities and the extent of authority you require over your security configurations.

Traefik vs HAProxy: A Closer Look at Scalability

Evaluating a load balancer's ability to handle high network traffic and request volumes efficiently is vital in the selection process. In this review, we delve into the scalability features of Traefik and HAProxy load balancers.

Diving Deep into Traefik's Scalability

Traefik was built with modern dynamic architectures in mind and showcases a remarkable knack for managing services that are frequently added, deleted, or altered in size. This capability is powered by its auto-discovery mechanism that automatically detects and configures new services.

Traefik gains a further advantage in scalability due to its compatibility with a host of backend services like Docker, Rancher, Kubernetes, and Swarm mode. This trait aids in tandem growth with your evolving infrastructure.

Operating on a stateless design, Traefik is independent of user data or session storage. This characteristic promotes easy horizontal scaling through the addition of more Traefik entities.

Delving into HAProxy's Scalability

HAProxy is recognised for its top-tier performance and ability to handle thousands of concurrent connections. This prowess is backed by a single-threaded event-driven design that manages connections without requiring multiple threads or processes.

Increasing scalability with HAProxy can be achieved by adding robust hardware or instances. An additional asset is its support for session persistence - crucial for applications that need a constant state across requests.

One drawback with HAProxy is the absence of an auto-discovery feature, implying potential manual updates in your infrastructure.

A Comparative Look at Traefik and HAProxy Scalability

FunctionalityTraefikHAProxy
Auto-discoveryAvailableMissing
Stateless DesignAvailableMissing
Session PersistenceMissingAvailable
Multiple backend supportComprehensiveLimited
Ease of horizontal scalingHighManual setup needed

Example: Amplifying Traefik

Increasing the number of Traefik instances is as simple as running the command:


docker service scale traefik=5

Executing the command evenly splits the load across 5 instances of the Traefik service.

Example: Amplifying HAProxy

On the other hand, enhancing HAProxy requires manual configuration. The following Docker execution demonstrates the process:


docker service create \
  --name haproxy \
  --mode global \
  --publish published=80,target=80 \
  --publish published=443,target=443 \
  haproxy:1.7

This command sets up a global HAProxy service, spawning a HAProxy entity on each node in the swarm.

In conclusion, both Traefik and HAProxy exhibit robust scalability features. Yet, Traefik's auto-discovery and stateless design accord it scalability advantages in fluctuating environments. On the flip side, for applications required to handle substantial traffic while maintaining consistent states, HAProxy stands strong due to its session persistence and high-performance design.

Support & Community: Traefik vs HAProxy Review

In the world of open-source software, the strength and responsiveness of the community, as well as the level of support provided, are critical factors to consider. Both Traefik and HAProxy have robust communities and offer varying degrees of support. This chapter will delve into the details of these aspects for both load balancers.

Traefik: Community and Support

Traefik has a vibrant and active community that is always ready to assist with any issues or queries. The community is primarily based on GitHub, where users can raise issues, contribute to the codebase, and engage in discussions. There are also numerous blogs, tutorials, and guides available online that can help users navigate the complexities of Traefik.

In terms of support, Traefik offers a range of options. For users who prefer self-service, there is a comprehensive documentation available on the official website. This includes detailed guides on installation, configuration, and troubleshooting. For more complex issues, users can opt for professional support. Traefik's parent company, Containous, offers enterprise-level support with guaranteed response times, access to dedicated support engineers, and even on-site training.

HAProxy: Community and Support

HAProxy, being a more mature project, has a larger and more established community. The community is spread across various platforms, including GitHub, Stack Overflow, and the official HAProxy forum. The community members are generally very knowledgeable and helpful, making it easy for new users to get up to speed.

HAProxy also offers a comprehensive set of documentation, covering everything from basic setup to advanced configuration options. For users requiring professional support, HAProxy Technologies, the company behind HAProxy, offers several support plans. These range from basic email support to premium plans that include 24/7 phone support and dedicated account management.

Comparing Support and Community

AspectTraefikHAProxy
CommunityActive, primarily on GitHubLarger, spread across multiple platforms
DocumentationComprehensive, available on official websiteComprehensive, available on official website
Professional SupportAvailable, provided by ContainousAvailable, provided by HAProxy Technologies

In conclusion, both Traefik and HAProxy have strong communities and offer a range of support options. The choice between the two will depend on your specific needs and preferences. If you prefer a more active, GitHub-centric community, Traefik might be the better choice. On the other hand, if you value a larger, more established community, HAProxy could be the way to go. In terms of support, both offer professional services, so your decision might come down to the specific features of each support plan.

Understanding Applications: Use Cases of Traefik and HAProxy Load Balancers

Harmonizing Network Operations: A Deeper Look into the Roles of Traefik and HAProxy

Achieving effective network traffic maneuvers is vital across many sectors and devices. Evidently, the toolbox of Traefik and HAProxy effectively meets these complex system requirements due to their inherent advanced features and capabilities. Let's dive in to understand more about the distinct strengths and advantages that these network traffic management tools offer under specific conditions.

Traefik: An Exceptional Conduct for Microservices Traffic Management

When it comes to operating within microservices traffic, Traefik is usually a go-to tool for developers due to its adaptive attributes that flourish within dynamic settings. These characteristics make it a widely favored tool, especially in scenarios that require regular adjustments and reforms.

Case Study 1: Proficient Route Management in Docker Swarm & Kubernetes Containers

Traefik is considered a top pick when dealing with Docker Swarm or Kubernetes for container orchestration. It’s inherently nimble integration capabilities allow it to instantly recognize newly incorporated services and adjust its settings accordingly. This seamless procedure eliminates the need for manual changes, significantly lowering the chances of errors.


# Configuring Traefik with Docker
version: '3'
services:
  traefik:
    image: traefik:v2.4
    command:
      - "--providers.docker=true"
      - "--providers.docker.exposedbydefault=false"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
    networks:
      - web
    ports:
      - "80:80"
      - "8080:8080"
networks:
  web:
    external: true

Case Study 2: Skillful Divergence of Traffic Across Numerous Services

When it involves distributing traffic across a multitude of services, Traefik excels. With its support for advanced traffic distribution algorithms like Round Robin and Weighted Round Robin, it ensures comprehensive distribution of requests.

HAProxy: Your Trustworthy Companion for Heavy Traffic Situation

HAProxy has earned commendable respect in the field due to its solid performance and resilience. These qualities propel it to a prime position when handling huge bursts of traffic require a steady operational run time.

Case Study 1: Maintaining Steady Web Traffic

HAProxy is a popular choice when it comes to managing web operations at a broader scale. The platform is built to manage a high number of simultaneous connections, ensuring uninterrupted access, even during peak user engagement periods.


# Sample HAProxy setup for a high-traffic website
global
    log /dev/log    local0
    log /dev/log    local1 notice
    chroot /var/lib/haproxy
    stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
    stats timeout 30s
    user haproxy
    group haproxy
    daemon

defaults
    log     global
    mode    http
    option  httplog
    option  dontlognull
    timeout connect 5000
    timeout client  50000
    timeout server  50000
    errorfile 400 /etc/haproxy/errors/400.http
    errorfile 403 /etc/haproxy/errors/403.http
    errorfile 408 /etc/haproxy/errors/408.http
    errorfile 500 /etc/haproxy/errors/500.http
    errorfile 502 /etc/haproxy/errors/502.http
    errorfile 503 /etc/haproxy/errors/503.http
    errorfile 504 /etc/haproxy/errors/504.http

Case Study 2: Skillful Navigation of TCP Traffic

Another striking feature of HAProxy is its ability to adeptly maneuver TCP traffic. With its broad compatibility with numerous TCP protocols such as HTTP, HTTPS, SMTP, and MySQL, HAProxy can be efficiently used in a variety of scenarios.

In summary, Traefik is your best bet for traffic management in a microservices set-up and operations involving containers, owing to its dynamic configuration facet. In opposition, HAProxy is the tool you'd want to rely on during heavy-traffic conditions and for expert management of TCP traffic due to its robust durability and high-quality performance standards.

Placing Traefik and HAProxy Head-to-Head: Advantages and Drawbacks

In the sphere of load balancer technology, the names Traefik and HAProxy have a strong presence due to their distinguishing characteristics and functionalities. This segment will provide an in-depth contrast of both solutions, shedding light on the pros and cons each offers.

Pros of Using Traefik

Traefik is an up-to-date HTTP reverse proxy and load balancer which boasts of user-friendly configuration, dynamic adaptability, and groundbreaking features. Below are a few major benefits of Traefik:

  1. Ease of Adaptability: In contrast to conventional load balancers, Traefik negates the need for manual adjustments for configuration modifications. It identifies the optimal configuration for your services and adapts to any transformations in real-time.
  2. Compatibility with Microservices: Designed to manage up-to-date infrastructures, Traefik supports controlling its configuration via multiple backends like Docker, Swarm, Kubernetes, and several others, automatically and in a dynamic way.
  3. Incorporated Analytics: Traefik comes equipped with integrated analytics supported by tools like Prometheus, Datadog, StatsD, InfluxDB, providing a convenient avenue for service monitoring.
  4. User-Friendly: Traefik features a simple and easy-to-comprehend configuration, presenting an ideal option for newcomers.

Cons of Using Traefik

While Traefik has a long list of advantages, it comes with a few downsides:

  1. Restricted TCP Support: Traefik supports TCP load balancing, but its support isn't as extensive as its HTTP counterpart.
  2. Lack of Sophisticated Features: In comparison to other load balancers, Traefik misses out on some sophisticated features such as content switching, advanced routing, and ACLs.

Pros of Using HAProxy

HAProxy is a cost-free, speedy, and trustworthy solution providing high availability, load balancing, and intermediating for TCP and HTTP-centered applications. Below are some standout benefits of HAProxy:

  1. Superior Performance: Renowned for its high speed and minimal memory usage, HAProxy can manage thousands of connections simultaneously without any hassles.
  2. Cutting-Edge Features: HAProxy features a multitude of sophisticated features such as sophisticated routing, content switching, and ACLS to name a few.
  3. Customizability: The configuration of HAProxy offers great flexibility and can be personalized to fit a variety of scenarios.

Cons of Using HAProxy

Despite its many advantages, there are a few areas where HAProxy falls short:

  1. Complex Configuration: The configuration process of HAProxy can be intricate and confusing, particularly for those new to the field.
  2. Limited Analytical Tools and Monitoring: Unlike Traefik, HAProxy doesn't come with pre-installed analytics. You would need external tools for monitoring.
  3. Static Configuration: Unlike Traefik, modifications in the HAProxy configuration necessitate a reload or reboot.

In summary, both Traefik and HAProxy come with their unique set of strengths and shortcomings. Your choice between these two will largely depend on your specific needs and the complexity of your system.

Concluding Thoughts: Traefik vs HAProxy Load Balancers

When undertaking our comprehensive research, we thoroughly studied two prevalent load distributor options, namely the cloud-focused Traefik and the TCP/HTTP specialized HAProxy. We took a deep dive into their unique capabilities, security attributes, scalability potential, community engagement levels, and implementation conditions. Following our meticulous examination, we are now ready to piece together our comprehensive insights and draw well-grounded conclusions.

A Closer Look at Traefik and HAProxy

The Traefik platform distinguished itself as a modern take on HTTP reverse proxy and load distribution systems. It differentiated itself with its straightforward usability and hassle-free, automated setup procedures. As a cloud-centric utility, it can readily integrate with a multitude of cloud backends, including the likes of Docker or Kubernetes. Traefik's stand-out attribute lies in its smart auto-configuration feature, which all but eliminates the need for manual input.

On the other hand, HAProxy steps up as a steadfast, high-octane load distributor offering services primarily for TCP/HTTP protocols. Its reputation for consistently nailing performance metrics has won over many businesses. Renowned for robustness and a rich feature suite, HAProxy can smoothly handle even the most demanding traffic surges, making it the go-to choice for organizations with advanced, high-traffic requirements.

On Matters of Performance

Assessing their operational capabilities, both Traefik and HAProxy exhibit strong performance. HAProxy, a veteran in the field, guarantees remarkable performance and dependability due to its refined technology and strategic optimizations. It easily handles thousands of simultaneous requests - a strength that resonates particularly well in high-traffic conditions.

Traefik might not trump HAProxy on sheer performance metrics, but it holds its own with impressive ease of use and the aforementioned auto-configuration feature. This trait makes Traefik a competitive option for many real-world applications while bringing significant time and resource conservation benefits.

Security and Scalability Provisions

In terms of security, both Traefik and HAProxy bring various protective features to the table. HAProxy implements a sophisticated security arsenal, including ACLs, stick tables, and SSL/TLS offloading. Traefik might not offer an array of security options like HAProxy, but it covers the essentials while offering smooth integration with Let's Encrypt for automatic SSL certificate management.

Talk of scalability shows both load distributors to be competent players. Traefik leverages its cloud-native design to offer exceptional scalability, primarily for dynamic environments. Conversely, HAProxy, although not originally tailored for cloud use, readily scales in either direction (horizontal or vertical) to accommodate workload spikes.

Community Engagement and Support

The users' communities for both Traefik and HAProxy are active and vibrant, with comprehensive supporting documentation. HAProxy, being a longer-existing product, commands a larger community and wealth of resource materials. Traefik's user community, however, is exhibiting fast growth rates, and its instruction resources are notably comprehensive and precisely organized.

Summarizing The Discussion

On the final note, both Traefik and HAProxy emerge as resilient and efficient load distributors, each with its compelling strengths. HAProxy impresses with its superior performance, stalwart reliability, and extensive feature set - ideal for handling intricate, heavy-traffic scenarios. Traefik, with its trademark simplicity, hands-off configuration, and cloud-centric design, emerges well-suited for dynamic, cloud-first deployments.

Choosing between Traefik and HAProxy will inevitably hinge on the specific requirements and conditions of your unique context. Comprehensive evaluation of all factors—performance, security, scalability, user-friendliness, and community support—is recommended before making a final decision.

FAQ

Subscribe for the latest news

Learning Objectives
Subscribe for
the latest news
subscribe
Related Topics
