K3s vs MicroK8s Lightweight Kubernetes Distributions

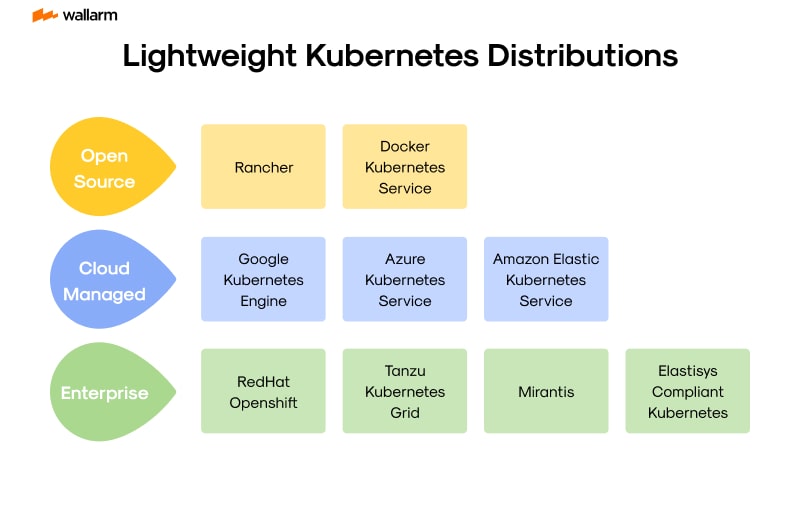

Introduction to Lightweight Kubernetes Distributions

Kubernetes, widely recognized as K8s in tech circles, represents a prevalent, open-source platform that leverages automated mechanisms to help distribute, scale, and manage applications that underwent containerization. It organizes container clusters vital for an application into manageable units, thereby improving navigation and management. Nonetheless, Kubernetes, despite its power and adaptability, has challenges, which include intricate configurations and resource-intensive operations. A solution to these challenges can be found in streamlined versions of Kubernetes, referred to as lightweight Kubernetes distributions.

These versions are basically a smaller, economical form of Kubernetes that have been methodically constructed to simplify the installation process, promote easy use and ensure balanced resource utilization. They have been successful, especially in the context of edge computing, Internet of Things (IoT), Continuous Integration/Continuous Deployment (CI/CD) pipelines, and environments characterized by resource constraints or where straightforwardness is required.

Compact Variants of Kubernetes: The Emerging Phenomenon

The rise of microservices and containerization has surged the need for orchestration capabilities. Establishing its prominent position in industry as the predominant standard for orchestrating containerized applications at scale, Kubernetes has become increasingly popular. However, no one can deny that Kubernetes has its tricky facets, including a steep learning curve, which seems excessive for smaller projects or development goals.

This gap is filled effectively by lightweight Kubernetes distributions such as K3s and MicroK8s. Defined by their simple yet resourceful nature, they offer an easy to install and manage alternative to Kubernetes. They clearly stand out as a viable choice for developers, small projects, and edge computing scenarios.

The Rise in Demand for User-friendly Kubernetes Alternatives

Stripped-down versions of Kubernetes retain the core features of Kubernetes but do away with the complexities and resource demands. Their importance become significant in certain specific use cases.

For instance, edge computing scenarios that have constrained resources and require low latency. The lightweight distribution proves beneficial for developers who want to run Kubernetes on their local systems for development or testing purposes.

Moreover, these user-friendly distributions are a shrewd option for organizations aiming to acquaint themselves with Kubernetes but cautious of its intricate workings. A more accessible, simplified version of Kubernetes can support these establishments to navigate the realm of container orchestration.

K3s and MicroK8s: The Pioneers

K3s and MicroK8s stand out from the crowd of reduced Kubernetes distributions due to their ease-of-use, effectiveness and impressive functionality. Both occupy the open-source space and strive to render Kubernetes approachable and manageable, particularly in resource-crunched settings.

Though they share some common characteristics, K3s and MicroK8s have distinct strengths and features which will be delved into in future sections. The forthcoming overview will encompass their structural design, installation procedures, performance metrics, resource-saving strategies, and additional vital aspects in an exhaustive comparison of these compact Kubernetes alternatives.

In conclusion, compact Kubernetes alternatives such as K3s and MicroK8s make a compelling choice, particularly for edge computing, development aims, and smaller-sized projects. A deeper understanding of their individual traits and capabilities can guide one to the decision of picking the most suitable option for their specific requirements and situation.

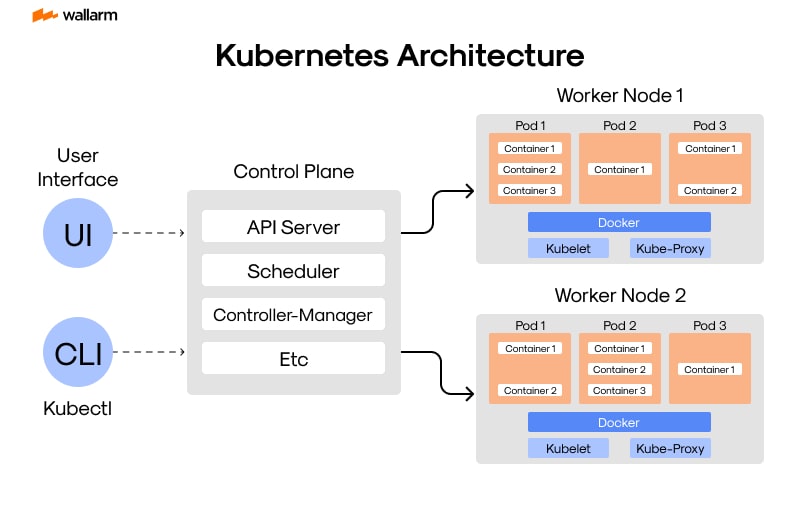

Delving Deep into Kubernetes Architecture

A Fresh Perspective on Kubernetes: An Elaborate Discussion

Typically referenced as K8s, Kubernetes ascends as a distinguished open-source network, pivotal in transforming, improving and assimilating blockchain within various software applications. It amalgamates several software units - denoted as 'containers' - to guarantee a seamless coordination and operational system. Let's delve deeper into its mechanism.

Understand the Synchronized Operations of Kubernetes

The essential base of Kubernetes is supported by sturdy units known as 'nodes'. These units are capable of effectively managing software in unique sections, alternatively termed 'containers'. The consistent function of this intricate network requires at least one functioning node.

Each node in Kubernetes constitutes an environment conducive for software application execution. These environments unite for processing, commonly regarded as 'pods'. The exact imitation and guidance of these nodes and pods are expertly adjusted by the control plane software. This software extends across several machines, handling numerous nodes from a single command center, enhancing operational efficiency.

Kubernetes Command Hub: The Control Plane

Functioning as its core, the control plane consistently checks variations and adjusts the balance within the network, similar to contracting a new pod to accommodate rising deployments. This process involves several unique elements:

  • Kube-apiserver: Executes all necessary REST functions affecting network tasks.
  • Etcd: A modern key-value warehouse for secured data storage relating to network endeavors.
  • Kube-scheduler: Promotes the creation of new pods and designates them to a working node.
  • Kube-controller-manager: Manages multiple controllers within the central node.
  • Cloud-controller-manager: Directs controllers in alignment with respected cloud service providers.

Boosting Node Performances

In terms of Kubernetes, a node, either physical or virtual, satisfactorily meets the network's needs. Each node is engineered to accommodate pods via incorporated infrastructure units. Every node consists of:

  • Kubelet: A junction on every node in the distributed network, ensuring the uninterrupted function of all containers within a pod.
  • Kube-proxy: Serves as a network mediator across all nodes, adhering to Kubernetes service standards.
  • Container runtime: A principal software suite that manages the initiation and maintenance of container features.

Unmasking Fundamental Components of the Kubernetes Architecture

Numerous critical units amalgamate to structure Kubernetes, displaying a comprehensive perspective of system operations. These aspects, incorporating workloads, essential storage, and network assets, provide a complete comprehension of the network's power.


In Kubernetes' architectural design, a Pod represents the smallest unit capable of rolling out. It distributes various active tasks throughout the network, giving shelter to individual or grouped containers.


Predominantly known as microservices, a Kubernetes Service assures persistent connections to logical pod clusters, setting up access points to these compilations.


Data extracted from the containers serve as temporary storages for applications engaging with them. Kubernetes addresses this with Volumes; areas assigned to provide data access to a pod's containers.


Kubernetes Namespaces indicate the capacity to incorporate numerous virtual networks within a single physical one.

Journeying Through the Complex Corridors of Kubernetes Networking

Though complex in structure, the networking component of Kubernetes is fundamental for the system's overall functionality. It employs strategies to manage four different network situations: Inter-Container Communications, Pod to Pod Exchanges, Pod and Service Associations, and Ties from Service to an Outward Endpoint. It orchestrates this with systems like the kube-proxy, DNS server, and Ingress.

In conclusion, Kubernetes presents a robust framework prioritizing elasticity, enabling application units to recover rapidly and shift effectively among machines when necessary. It devises an efficient tactic for system command division and complex application management.

Exploring the Need for Lightweight Kubernetes: K3s and MicroK8s

When discussing the landscape of container orchestration, Kubernetes takes the top spot due to its multitude of tools and comprehensive features. However, it is evident that Kubernetes' intricate nature and significant resource requirements pose a problem, primarily where resource availability is limited. Being aware of this predicament, more compact variants like K3s and MicroK8s have appeared, tailored to match distinctive operational scenarios and necessities.

Trimmed Kubernetes: An Answer to Limitations in Resources

The implementation of a full-fledged Kubernetes system tends to suck up resources, rendering it unsuitable for scenarios such as IoT apparatus, edge computing scenarios, or cost-constrained small-to-medium businesses (SMBs).

In these circumstances, a large-scale Kubernetes implementation might be impractical or an economical strain. That is where trimmed versions of Kubernetes come in, proposing a pruned version that leaves out non-crucial aspects. The end result is a setup process that is simpler and more resource considerate.

Gaining Traction: K3s and MicroK8s - The Slim Titans

K3s and MicroK8s, both scaled-down versions of Kubernetes, are seeing a surge in popularity. These slimmer alternatives deliver an optimal Kubernetes experience, facilitating its use in resource-sensitive circumstances.

Rancher Labs, the creators of K3s, deserve applause for its ultra-trim design. With a tiny size of less than 100MB, it dismisses non-standard, alpha, and surplus Kubernetes tools, encapsulating the essentials in a streamlined, installation-ready package.

In contrast, Canonical (the brains behind Ubuntu) launched MicroK8s, leveraging minimalist design concepts. Offering an all-in-one installation package that incapsulates standard Kubernetes characteristics, MicroK8s emerges as the perfect pick for developers eager to promptly establish a Kubernetes environment for exploration or testing objectives.

Light-weight But Mighty

Even with their stripped-back design, both K3s and MicroK8s remain potent. They uphold fundamental Kubernetes features such as Pods, Services, and Deployments while also providing additional provisions for cluster observation and management.

What's more, both have clinched full certification from the CNCF (Cloud Native Computing Foundation), vouching for their accordance with the standard Kubernetes ecosystem. This validation secures the functionality of standard Kubernetes tools, APIs, and plugins with both K3s and MicroK8s, similar to a typical Kubernetes implementation.

In the ensuing sections, we'll take a granular look at K3s and MicroK8s, examining their blueprint, setup process, performance metrics, and more. This exploration will give you the necessary knowledge to determine the most fitting choice for your specific requirements and operational setups.

Unveiling K3s: A Closer Look

Rancher Labs immediately charted a fresh course by repackaging Kubernetes into a polished, compacted format named K3s. This invigorating enterprise caught the eye of entities like the influential CNCF in light of its commitment to heightening productivity in environments with stringent resource confines.

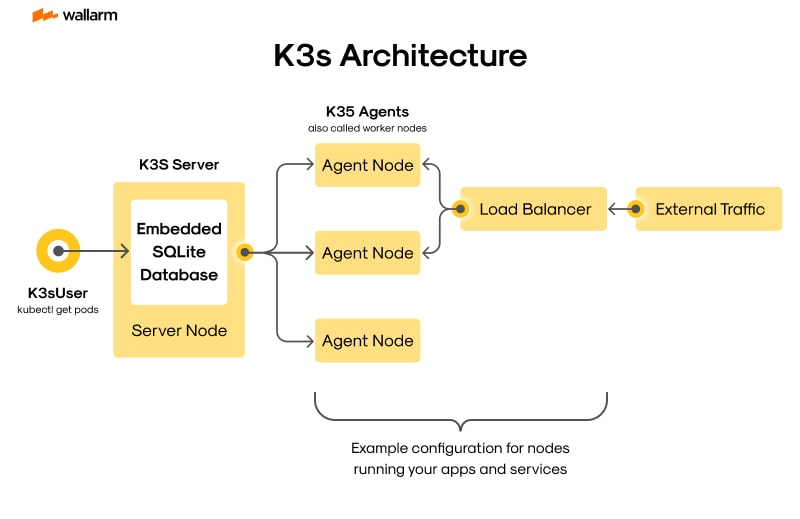

K3s Architecture: Delving into its Specifications

In the course of shaping K3s, Rancher Labs deftly did away with unnecessary components from Kubernetes, focusing keenly on the indispensable system necessities. A multitude of non-essential units, such as preliminary functions and idle controllers, were discarded, leading to a binary size reduction to less than 40MB. Consequently, a more precise, pared-down version of Kubernetes emerged as K3s, proving its worth in various digital arenas, including border computing, IoT applications, fluid systems orchestration, and efficient usage in ARM technology.

In the updated K3s framework, distinct control plane operations were amalgamated into a solitary server nexus. This focal point encompasses a plethora of tasks, such as managing the Kubernetes API server, task scheduling, supervision, and regulating etcd. To boost functional efficiency, supplementary nodes were incorporated to attend to tasks like kubelet functions and container runtime, under the supervision of containerd.

Unearthing K3s' Edge

  1. Size Condensation: K3s pares down Kubernetes to a pared back format by focusing on the fundamental factors, leading to a reduced binary size and minimal resource utilization.
  2. Effortless Installation: The K3s deployment method is incredibly straightforward, achievable with a singular command, sidestepping the need for complex setup procedures.
  3. Integrated Security Provisions: Communications between server to node agents within K3s are safeguarded by the TLS protocol. Furthermore, the system houses built-in faculties to independently produce and regulate pertinent security certificates.
  4. Compatibility with ARM Architectures: K3s displays affinity with ARMv7 and ARM64 blueprints, thereby broadening its scope in edge and IoT-driven structures.
  5. Robust Networking and Storage Scheme: K3s features an inherent CNI plugin to cater to networking requirements and collaborates with local storage resources. It further provides consolidated access to Helm for superior application control.

Navigating through a prototypical K3s Setup

We'll initiate by setting up a straightforward application. For installing K3s, input this command:

curl -sfL | sh -

Once established, liaison with the cluster through the kubectl command. For instance, you can organize a basic nginx server via this command:

kubectl run nginx --image=nginx --port=80

This command forms a deployment christened "nginx", using the nginx image. To facilitate accessibility, utilize the ensuing command:

kubectl expose deployment nginx --type=NodePort

This generates a service facilitating access to the nginx server via an accessible port on all nodes. As such, the server can easily be accessed from any node through the newly created port.

To sum up, Rancher Labs' K3s presents a manageable, efficient option to Kubernetes. The system's deployment and maintenance is markedly simpler, hence its popularity amongst users seeking an economical Kubernetes alternative for resource-constrained scenarios.

Unpacking MicroK8s: Detailed Analysis

Unveiling MicroK8s

Navigate the realm of MicroK8s, a bespoke Kubernetes derivative, conceived by the originators of Ubuntu - Canonical. This prime Linux snap software is engineered for adaptive deployment across all Linux ecosystems, assuring seamless functioning and stress-free integration.

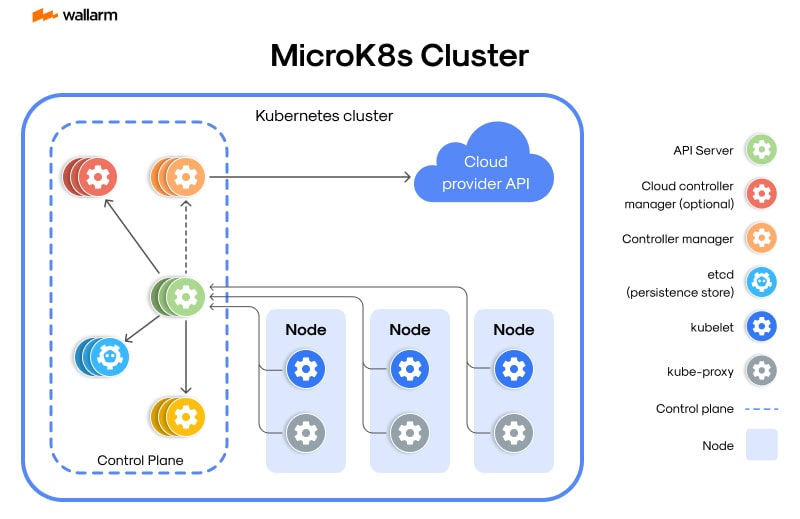

MicroK8s Architecture - A Deep Dive

The architecture of MicroK8s triumphs owing to its innate minimalism and its contained yet effective offerings. Packed with the essential tools needed to manage a Kubernetes cluster, it stands as a top-notch solution for edge computing, the realm of Internet of Things (IoT), or deployment within Small-to-Medium Enterprises (SMEs).

MicroK8s embraces a lean approach towards resource usage, resulting in nominal disk and memory footprint. Its minimalist design encapsulates the key components of Kubernetes including the API server, scheduler, and controller-manager. Additionally, it integrates critical services such as DNS, dashboard, and ingress for optimized operations.

Insights on Installation and Configuration

MicroK8s installation is a breeze, thanks to its snap packaging. Snap, the ultimate Linux package facilitator, streamlines software installation and upgrade processes. Consequently, MicroK8s can be initiated on any Linux-compatible environment with a single command invocation.

Following the installation, users can manage MicroK8s effortlessly using the command-line interface microk8s. The interface hosts commands for simplified cluster administration, application roll-out, and glitch resolution.

Defining Features and Abilities

The potent characteristics of MicroK8s position it as an appealing choice for Kubernetes deployment. The features include:

  1. Launch as a Single Package: Both deployment and updating are made straightforward with MicroK8s packaged as a single snap.
  2. Clustering Across Nodes: MicroK8s has a built-in multi-node clustering ability, greatly simplifying Kubernetes cluster deployment.
  3. Auto Upgradation: MicroK8s continuously aligns with the latest stable version of Kubernetes, keeping your cluster updated with recent technology upgrades and security improvements.
  4. Modular Enhancements: MicroK8s provides a range of enhancement tools including Helm, Istio, and Prometheus that can be enabled or disabled based on individual needs.
  5. Inbuilt Security Measures: MicroK8s comes with an enforced TLS encryption, securing all internal cluster communication.

Performance and Resource Usage

MicroK8s is fine-tuned for maximizing performance while minimizing resource consumption. Although it's designed to be light on disk and memory usage, the actual consumption would be contingent on the user tasks and cluster node count.

Community Support and Backing

Owing to its staunch affiliation with Canonical, the pioneers of Ubuntu, MicroK8s is backed by a dedicated user and developer community. Canonical provides robust enterprise support, fostering trust for businesses harnessing MicroK8s for mission-critical applications.

To sum up, MicroK8s is a compact, powerful version of Kubernetes, providing simple implementation, usage, and a plethora of features. It's an excellent solution for developers and operators looking for an uncomplicated Kubernetes experience.

K3s vs MicroK8s: Core Differences

Rising as a prominent contender in the field of sleek and proficient Kubernetes architectures, K3s is a creation nurtured by Rancher Labs. It firmly sets itself against MicroK8s, a progressive offering from Canonical, the minds behind Ubuntu. While these systems showcase affinity in minimalist deployment techniques, streamlined structures, and fine-tuned capabilities for IoT and edge computing arenas — even for smaller data center operations, their distinctive characteristics underline the unique value propositions they offer.

Primary Functions and Proficiencies

Designed by the team at Rancher Labs, K3s encapsulates the principle of simplicity in every element. Its central goal prioritizes an uncomplicated yet efficient Kubernetes solution by shedding superfluous features. This becomes particularly vital for applications in IoT where the resources are often limited. Bearing a sub-40MB binary, K3s offers all you need for an unpretentious Kubernetes setup, from supervising container life cycles to building an overlay network.

Contrarily, Canonical’s MicroK8s adopts a slight deviation in this course, offering a comprehensive Kubernetes platform in a succinct package, while still retaining integral capabilities.

An Overview of K3s and MicroK8s’ Deployment and Setup

The configuration and deployment process of K3s and MicroK8s reflect their distinct personalities. K3s prides itself on its installation simplicity: a singular command puts an entire Kubernetes cluster in place, arranging the initialization of primary and secondary nodes along with the network setup.

On the other hand, MicroK8s necessitates a more involved process. Although this might give an impression of complication, it does hand over the reins of hardware choice during the setup and granular control over network parameters.

Inclusion of Add-Ons

K3s adopts an inclusive approach, integrating extensions like Helm for package management, Traefik for overseeing ingress, and CoreDNS for DNS-related tasks. These ready-to-use add-ons enable speedier Kubernetes cluster configuration.

Conversely, MicroK8s steps away from out-of-the-box inclusion of extensions. It embraces a command-line interface, granting users the authority to tweak cluster parameters and enabling or disabling add-ons. This refined strategy reflects a user-centric design in add-on management.

Supervising Networks

K3s inclines towards Flannel as its preferred network plug-in, though it accommodates alternatives like Calico. Additionally, it introduces an in-built service load balancer to enhance service discovery. Contrastingly, MicroK8s elects Calico as the go-to network plug-in but supports other CNI plugins. It relies on Kubernetes' inbuilt service discovery, foregoing an integrated load balancer.

Hardware Demands

Remarkable for its conservative resource demands, K3s can operate on hardware as humble as 512MB RAM, rendering it ideal for resource-critical IoT scenarios. Meanwhile, MicroK8s has heftier hardware demands, insisting on a dual-core CPU and a minimum of 1GB RAM, while still maintaining a lean footprint.

In essence, both K3s and MicroK8s affirm their value as minimalist yet efficient Kubernetes systems. However, their respective guiding principles, system setup techniques, add-on management, network supervision approaches and hardware need differences mark their individuality. These unique traits could potentially sway your choice, considering how well each system aligns with your specific requirements and deployment strategy.

Installation Process: MicroK8s

Canonical is the main driver behind the development of Snap, an original method for pairing MicroK8s with a customized server. The primary goal is to establish a foundational platform for Linux applications, streamlining the administration of diverse software and their related dependencies. Snap brings the added benefit of providing enhanced security and isolation for the project environment, and it's Canonical's role to ensure the flawless integration of MicroK8s.

Essential Prerequisites

To ensure a trouble-free setup, certain prerequisites must be met:

  1. For Snap to function without glitches, it must be deployed on a Linux distribution that supports Snap. Suitable distributions include Ubuntu 16.04 LTS, Debian, Fedora, etc.
  2. Verify that Snap is already installed on your system. If it isn't, you can use your Linux distribution's package manager to install it. As an example, you can use the command sudo apt install snapd to install Snap in Ubuntu-based systems.
  3. In spite of its compact design, MicroK8s requires a high-performance system. It demands at least 20GB of disk space, 4GB of RAM, and a dual-core processor to work optimally.

Integration Process

To incorporate MicroK8s into your system:

1. Launch your preferred terminal emulator tool.

2. Kick-off the integration of MicroK8s with this specific snap command:

sudo snap install microk8s --classic

The --classic switch is required as it grants MicroK8s full access to the system, an access typically restricted for snap applications.

3. To verify the successful completion of the setup, use:

microk8s status --wait-ready

A successful setup would display "MicroK8s is in operation" signifying the absence of issues in the process.

Post-integration Modifications

Post the MicroK8s integration, the following configurations are recommended for an efficient operation:

1. Add your user account to the 'microk8s' group by executing:

sudo usermod -a -G microk8s $USER

This step enables you to control MicroK8s without requiring extra sudo rights.

2. To implement this change right away without needing to log out, execute:

newgrp microk8s

3. Activate the Kubernetes dashboard using this command prompt:

microk8s enable dashboard

This command triggers a web-based interface which facilitates the management of your server cluster, called the Kubernetes dashboard.

4. MicroK8s incorporates a variety of services such as DNS, Storage, Ingress which can be tailored to suit your needs by utilizing:

microk8s enable --help

This command will provide an understanding of these potential modifications.

Handling a MicroK8s installation via Snap offers a comfortable and clear-cut experience. By strictly adhering to the steps mentioned above, you can quickly set up a bespoke MicroK8s cluster for immediate use.

How to Install K3s: Step-by-Step Guide

K3s is a stripped-back variation of the Kubernetes engine, custom-made for developers and operators who are working within constrained resources. The platform's appeal lies in its no-nonsense setup pathway. What follows is a detailed guide that directs you through the various stages of the installation process.

Fundamental Prerequisites

Before plunging into the setup phases, ensure that your system can boast of these preconditions:

  1. A Linux-operated system - best if Ubuntu 18.04 or a more advanced alternative.
  2. Root or sudo privileges for your system.
  3. A stable internet connection.

Stage 1: Obtaining the K3s Binary File

Kickstart the setup sequence by securing the K3s binary file. Run the command below in your terminal:

curl -sfL | sh -

This command is tasked with both downloading and initiating K3s. The appended -sfL switch mandates curl to tamely overlook server errors and continue with redirects.

Stage 2: Verification of the Installation

Consequent to the termination of the installation journey, it's crucial to validate a triumphant setup. This can be realized by exercising:

k3s kubectl get node

The output should encapsulate elements about your node such as its identification, status, assigned roles, lifespan, and model.

Stage 3: Refining K3s

Post-validation of a fruitful K3s setup, you can move to adapt its controls in line with your preferences. This is enabled via the K3s configuration file located at /etc/rancher/k3s/config.yaml. You're free to employ any text editor of your liking to tweak this file.

Stage 4: Activating K3s

Once the K3s has been precisely configured, kick it into action by running the command:

systemctl start k3s

Stage 5: Permitting K3s to Run at Startup

To greenlight K3s initializing at every system startup, key in:

systemctl enable k3s

Stage 6: Monitoring the Status of K3s

To cap off the installation progression, scrutinize the K3s situation by typing:

systemctl status k3s

The output will lay bare the status and some operational specifics related to K3s.


Well done! You have executed the installation of K3s on your system successfully. While it's noteworthy that K3s, being a pared-down replica of Kubernetes, doesn't come packed with all the features its forefather does, it effectively tackles the task of deployment within environments that are strapped for resources.

In the following tutorials, we will delve into the process of erecting a K3s cluster. Stay with us!

Bootstrapping a K3s Cluster

Establishing a K3s cluster involves a few important steps, well-explained in the forthcoming series of instructions.

Instruction 1: Kickstart K3s

Sparking off the K3s cluster formation, you need to initiate K3s using the following code on your network server:

curl -sfL | sh -

This specific line of code spearheads the download and installation of K3s, eventually forming a single node cluster. After finalising this task, you can check whether K3s is working properly by using this command:

sudo k3s kubectl get nodes

Instruction 2: Expand with Worker Nodes

With your server configured effectively, it's time to add worker nodes. Do this by running the K3s installer on every node you plan to include. Here's the command to do that:

curl -sfL | K3S_URL=https://myserver:6443 K3S_TOKEN=mynodetoken sh -

In the command, myserver stands for your server's name or IP address, and mynodetoken is the same as the node token from your server. You will find the node token in the /var/lib/rancher/k3s/server/node-token file on your server.

Instruction 3: Confirm Cluster Operation

No sooner have you added your worker nodes than confirming that the cluster is working as expected. Run the below command on your server for confirmation:

sudo k3s kubectl get nodes

The response will display all the cluster nodes along with their status. If every node is labeled as 'Ready', your cluster operation is flawless.

Instruction 4: Inaugurate Applications

Once the cluster is ready to go, you can proceed with deploying your applications. K3s aligns with the traditional Kubernetes application implementation, so running 'kubectl' is enough to launch your application.

Here's an example of how to introduce an Nginx server:

sudo k3s kubectl run nginx --image=nginx --port=80

The provided command initiates a new deployment named nginx that hosts an nginx Docker image with the 80th port made available.

Instruction 5: Project Applications

Following a successful application launch, it’s time to ensure that these applications can be accessed externally. This process, referred to as exposure, is usually facilitated via a service. To ensure visibility of the deployed Nginx server, the below command can be followed:

sudo k3s kubectl expose deployment nginx --type=LoadBalancer --name=nginx-service

This, in effect, generates a new service called nginx-service, connecting the nginx deployment through a service. As a result, your Nginx server can be accessed by navigating to your server's IP address on any internet browser.

To sum up, erecting a K3s cluster is not a complex task, and careful observance of these instructions will result in a swift setup of a functioning K3s cluster.

Setting Up a MicroK8s Cluster

Establishing a MicroK8s cluster is commonly perceived as an effortless endeavor, primarily due to its intuitive design and ease of use. The ensuing procedure is a meticulous manual tailored to navigate you towards an efficient deployment of your very own MicroK8s cluster, sidestepping the routine necessity of composing your own directives.

Prerequisites for your System

As we dive into the setup blueprint, confirming your system's compatibility with the following requirements is pivotal:

  1. Operating System should be Linux, with preference being on Ubuntu 16.04 LTS (Xenial Xerus) or above, ensuring snapd compatibility.
  2. At least 20GB of storage capacity should be available.
  3. A minimum of 4GB RAM should be dedicated.
  4. Consistent access to the internet is indispensable.

Detailed Guidelines for Installation

Step 1: Employing Snapd

Given MicroK8s utilizes snap packaging distribution, the initial prerequisite involves the integration of snapd. Execute the subsequent command in your Ubuntu console:

sudo apt update
sudo apt install snapd

Step 2: Deploying MicroK8s

Upon successful assimilation of snapd, we progress towards the deployment of MicroK8s, achieved by executing the command below:

sudo snap install microk8s --classic

Here, the --classic annotation confers MicroK8s with explicit permissions for system resource access.

Step 3: Verifying Installation

Post-installation, ascertain the faultless functioning of MicroK8s by executing the command below:

microk8s status --wait-ready

This command perseveres until MicroK8s reaches operational status. A printed output, indicating seamless running of all services, notes the successful initialization.

Step 4: Granting Non-root User Access to MicroK8s Group

By default, MicroK8s operations are exclusive to the root user. To allow similar authorizations to a non-root user, the user needs to be affiliated to the microk8s group executing:

sudo usermod -a -G microk8s $USER

Post changes, it's required to log off and re-login for changes to be applied.

Step 5: Activating Core Services

MicroK8s offers a suite of optional services. Nevertheless, services like DNS and storage are fundamentally vital for basic cluster transactions. These can be activated using the commands below:

microk8s enable dns
microk8s enable storage

Initiating the Cluster

With MicroK8s aptly deployed and prepared, it's eventually time to kindle your cluster, involving two actions: cluster ignition and node integration.

Action 1: Igniting the Cluster

To fire up the cluster, exploit the following command:

microk8s init

This command kick-starts the cluster and simultaneously generates a command, which can be employed to merge additional nodes to this cluster.

Action 2: Including Nodes in the Cluster

To incorporate a node into the cluster, use the command generated by the initdirective on the node of interest. The command would somewhat look as follows:

microk8s join :/

Ensure <master-node>, <port>, and <token> are accurately replaced with values relevant to your cluster.

Adhering to the aforementioned steps will lead to the successful fruition of a MicroK8s cluster. The profound simplicity in the setup and untarnished operation of a MicroK8s cluster positions it as a specially crafted tool for developers and businesses seeking a sophisticated yet comprehensible Kubernetes distribution.

Performance Metrics: K3s

Within the context of trim Kubernetes distributions, the role of performance cannot be understated in driving the system's effectiveness and productivity. When turning our attention to K3s, it indisputably stands out due to its superior performance metrics, which has gained it considerable traction among system administrators and developers.

An Examination of K3s Performance

Tailored specifically to be a lean Kubernetes distribution, K3s prides itself on optimal resource utilisation. It accomplishes this by discarding sundry components that are standard inclusions in other Kubernetes distributions. Consequently, there is a notable decrease in binary size, dipping below 40MB. This results in K3s being remarkably disk space-efficient.

Processing Power and Memory Allocation

Two critical yardsticks for assessing any Kubernetes distribution are CPU and memory allocation. In these areas, K3s is a standout, with its pared-down design enabling smooth operations on even resource-limited systems.

In average conditions, it is feasible for K3s to function smoothly with a modest 512MB RAM and a single CPU core. In this context, it holds a clear advantage in edge computing contexts, where resource availability may prove challenging.

Data Transmission Efficiency

In Kubernetes distributions, the efficiency of network performance is vital. K3s employs a nimble networking strategy that caters to swift data transmission and high output. As such, K3s clusters can run applications with efficient communication and minimal network resource consumption.

Efficacy of Storage

K3s features a streamlined storage model, engineered for efficacy. It accommodates both local and networked storage alternatives, allowing for adaptability based on individual use-cases. The default storage backend in K3s is SQLite, which notably trims down the resources necessary for running a K3s cluster.

Load Performance

High load efficiency is an integral part of K3s' design. The synergy of its lean design and astute resource management leads to excellent load performance. K3s maintains optimal performance even under onerous loads, thereby enabling applications to perform seamlessly.

Synopsis of K3s Performance Metrics

Metric K3s Performance
Binary Dimension < 40MB
Lowest RAM Requirements 512MB
CPU Utilization Low
Data Transmission Efficiency High
Storage Economy High
Load Performance High

To conclude, K3s' exceptional performance attributes set a high standard in the domain of trim Kubernetes distributions. Its minimalist design and judicious utilisation of resources make it a leading choice in contexts where resources are scarce, such as in edge computing.

MicroK8s Performance Overview

MicroK8s, a Kubernetes distribution that is both compact and powerful, is a game-changer for software developers, system operations experts, and Internet of Things (IoT) fanatics. You'll gain insight into its impressive performance qualities in this discussion, courtesy of its innovative architecture and design principles.

Evaluating Its Efficiency

The sheer compactness of MicroK8s sets it apart. A mere 1.5GB of disk space is ample for setting up a single node; a particularly useful trait for edge computing solutions or IoT gadgets where resources are frequently scarce.

It also scales remarkably well with CPU usage; it can function with a single CPU but is quite capable of expanding its utilization per the available resources. This adaptability enables MicroK8s to be compatible with an extensive range of hardware setups.

Memory-wise, MicroK8s stands out. It can run with as little as 512MB of RAM, managing the memory in such a way so as to work effectively with what's available. This makes MicroK8s an ideal candidate for compute-limited environments.

Inspecting Its Networking Implementation

Powered by the Flannel networking plugin, MicroK8s deploys an efficient, lightweight networking structure. The beauty lies in its simplicity—an overlay network for Kubernetes pods to interact across nodes, bypassing the need for intricate network setups.

Latency becomes a non-issue with MicroK8s, as it ensures high-speed data transmission between pods, establishing a robust, fast network communication essential for particular applications.

Analyzing Its Storage Efficiency

MicroK8s provides flexibility with its storage compatibility, supporting options such as local storage, NFS, iSCSI, and others. Regardless of the scale—be it a modest development setup or a massive production operation—MicroK8s adapts well to varying storage requirements.

Mirroring its network capabilities, MicroK8s presents similar proficiency in data transfer between pods and storage mediums, ensuring minimal latency.

Scalability and Distribution of Workloads

MicroK8s embraces increasing workloads with elegance, thanks to its impressive scalability features. It comes with horizontal pod autoscaling, smoothly adjusting the pod replicas count based on CPU utilization or other predefined metrics.

When distributing network traffic among multiple pods, MicroK8s employs the built-in Kubernetes Service Type LoadBalancer, which caters to an even distribution of network loads and ensures that high availability is maintained.

Final Thoughts

To sum up, MicroK8s has a strong overall performance, thanks to its compact design, effective resource handling, and speedy network and storage functions. It's a thrilling alternative for a plethora of application domains. Whether you're a developer keen on a minimalist Kubernetes distribution for local development, or a systems operations expert exploring options for large-scale deployments, MicroK8s's robust performance characteristics make it a top contender.

Resource Management: K3s vs MicroK8s

In this segment, we'll explore the resource allocation functionality within Kubernetes distributions, specifically K3s and MicroK8s. This includes determining how to efficiently distribute computational elements such as processing power, memory, and data storage. Let's examine the operating mechanisms of K3s and MicroK8s, compare their effectiveness, and shed light on their distinctive aspects.

Dealing with CPU and Memory

Resource distribution in terms of CPU and memory, though essential within both K3s and MicroK8s, is handled uniquely by each distribution.

K3s is engineered with minimalistic principles and occupies a smaller software footprint. It carves out Kubernetes to reveal its basic elements, consequently lowering the demand for CPU and memory. Hence, a bare minimum of 512MB of Random Access Memory (RAM) and a single CPU core is all K3s needs to be operational. This makes it a fitting option for minimal-resource settings, IoT devices, and edge computing situations.

On its part, MicroK8s delivers a comprehensive Kubernetes experience in a compact format. It houses all standard components of Kubernetes, thereby acquiring slightly more resources than K3s. Despite this, MicroK8s remains an efficient system, operating seamlessly with just a single CPU core and 2GB RAM.

K3s MicroK8s
Minimum RAM 512MB 2GB
Minimum CPU cores 1 1

Storing Data

Data storage regulation, a vital part of resource distribution, exhibits adaptability in both K3s and MicroK8s.

By default, K3s comes equipped with a local storage provider, ideal for development and testing scenarios. For use in a production environment, K3s is compatible with several storage plugins such as Amazon EBS, NFS, or iSCSI.

Conversely, MicroK8s incorporates a default hostpath provisioner, permitting pod access to the host's filesystem. Although beneficial for development, this provisioner is less advisable for production. When utilized in a production setting, MicroK8s is compatible with multiple storage plugins including local volumes, Ceph, or OpenEBS.

K3s MicroK8s
Default Storage Provider Local Hostpath
Supported Storage Plugins NFS, iSCSI, Amazon EBS Ceph, OpenEBS, Local Volumes

Controlling Resource Consumption

Tools such as resource quotas and limits, supported by both K3s and MicroK8s, enable administrators to regulate the allocation of CPU and memory to each pod or namespace. This prevents monopolization of overall cluster resources by a single application.

Resource consumption parameters in K3s are adjustable via the Kubernetes API using the command-line tool kubectl. MicroK8s likewise employs the Kubernetes API for resource control, but provides the additional microk8s kubectl command that's preset to function with the MicroK8s cluster.

To sum it up, both K3s and MicroK8s boast powerful resource distribution functionalities. K3s, because of its slim build and low resource requirement, is a great fit for edge computing and minimal-resource settings. On the other hand, MicroK8s needs slightly more resources but delivers a complete Kubernetes experience, making it an excellent choice for development and testing grounds.

Extension and Add-on Management: Duel Between K3s and MicroK8s

Analyzing various Kubernetes versions, the handling of extensions and add-ons becomes a pivotal consideration. Both K3s and MicroK8s exhibit different capabilities in this area, as detailed below. Understanding their unique differences can help guide your selection.

Managing Extensions in K3s

The K3s Kubernetes variant takes a minimalist approach. It only includes the most basic components necessary to operate Kubernetes, removing all non-core features. For instance, several Kubernetes elements typically provided as extensions, like storage and networking plugins, are absent.

Minimalism, however, doesn't equate to a lack of adaptability. Despite the stripped-down nature, K3s offers significant versatility through the use of its Helm controller. Acting as a Kubernetes package handler, Helm enables effortless installation, upgrading, and administration of Kubernetes applications. K3s users can handle their extensions as Helm charts—easy to generate, version, distribute, and release.

Handling Add-ons in MicroK8s

In contrast to K3s, MicroK8s is packaged with a comprehensive selection of built-in add-ons. Some of the typical Kubernetes elements it incorporates are DNS, Dashboard, Storage, and Ingress. It also possesses advanced features like Istio, Knative, and RBAC.

MicroK8s simplifies add-on management by using a straightforward command-line interface. Users can activate or deactivate add-ons with just one command, with MicroK8s handling all required configurations and set up. It offers flexibility to adjust the MicroK8s settings for various applications, effortlessly.

Contrasting Extension and Add-on Management

Element K3s MicroK8s
Integrated Extensions/Add-ons Bare-bones Comprehensive
Handling Extensions/Add-ons Via Helm Controller With Command-line Interface
Adaptability Extensive Reasonable

The Contention: K3s against MicroK8s

The preference for K3s or MicroK8s, particularly regarding extension and add-on handling, depends largely on individual requirements and preferences. For those seeking a spartan environment, customizable with precision, K3s is likely the better fit. The Helm controller utilized offers significant adaptability and command over extensions.

Conversely, if a better-fitted initial environment is preferred, MicroK8s is indicated. It provides an extensive selection of integrated add-ons, and a simple command-line interface for add-on handling. It delivers a fully functional Kubernetes setup with ease.

To sum up, K3s and MicroK8s each have distinctive benefits with respect to extension and add-on management. Comprehending these distinctions can guide your decision in selecting the Kubernetes variant that best aligns with your requirements.

Community and Support: Comparing K3s and MicroK8s

When assessing freely available software, it's key to take into account the strength of the surrounding community, as well as the backup options they can provide. This holds true for both K3s and MicroK8s, which, though part of well-established communities with diverse support mechanisms, offer unique features.

K3s: Unison and Backup Framework

Having its roots in Rancher Labs, a company admired for its consistent involvement with user-accessible software and Kubernetes, K3s is enveloped by an energetic and reactive fellowship. This global alliance of contributors primarily converges on GitHub, using this platform to influence the ongoing development of the product, troubleshoot emerging concerns, and propose new functionalities.

The backbone of K3s's backup is a community-driven model, with users resorting to each other for assistance via GitHub's issue section or the Rancher discussion panels. For more specialized backup needs, Rancher Labs provides commercially packaged backup plans. These offer access to Kubernetes experts linked with Rancher who can dispense guidance and aid in troubleshooting.

MicroK8s: Fellowship and Backup Blueprint

MicroK8s, a creation of Canonical, the company behind Ubuntu, is bolstered by a similarly engaged and dynamic fellowship as K3s. Contributors to this varied MicroK8s network engage across multiple channels, including GitHub and Ubuntu discussion panels, bringing their unique wisdom and talents to the project's advancement.

For backup, MicroK8s users can rely on the knowledge pool of their community. Furthermore, Canonical provides commercially oriented backup for MicroK8s through its Ubuntu Advantage program. This initiative gives users the privilege to tap into the expertise of Canonical’s Kubernetes experts for advisory services and troubleshooting help.

Overview: Fellowship and Backup

Aspects K3s MicroK8s
Fellowship Drive Strong Strong
Main Communication Forums GitHub GitHub, Ubuntu Discussion Panels
Fee-based Backup Rancher Labs provides options Available under Canonical's Ubuntu Advantage

To wrap up, both K3s and MicroK8s boast energetic fellowships and offer commercial backup options. Your choice may be swayed by personal preferences or specific requirements, such as an inclination for Rancher's toolset leading towards K3s or a comfort with Ubuntu steering you towards MicroK8s.

Scalability: How do K3s and MicroK8s Measure Up

A dialogue around the adaptability attributes of K3s and MicroK8s demands recognizing how these specific arrangements maneuver to adapt to the ever-transforming loads of work. It's essential to consider how crucial the modification of their elemental components, like servers or nodes, is to adapting. Therefore, our primary concern is their proficiency in smoothly handling the augmentation in container and node quantities related to these two unique Kubernetes variations.

Dissecting the Nimbleness of K3s

The simplicity of K3s sets it apart and is refined for the management of edge computing, the Internet of Things (IoT), and resource-deprived scenarios. However, its trim design does not equate to inhibited expansion capabilities. K3s is masterfully constructed to operate uniformly across an extensive array of nodes and clusters.

Its creators took a calculated decision to forego the redundant features that usually decelerate larger systems. Because of this sleek build, K3s can nimbly accommodate growing workloads.

Interestingly, K3s employs SQLite as its primary datastore in contrast to the common usage of etcd in alternate Kubernetes platforms. This strategic selection bolsters K3s’s capacity to tackle the expansion of nodes and clusters without yielding speed.

Here’s a script to append an extra node to a K3s cluster:

# On the intended node
curl -sfL | K3s_URL=https://myserver:6443 K3S_TOKEN=mynodetoken sh -

Understanding the Flexibility of MicroK8s

MicroK8s seeks to deliver a broad Kubernetes experience in a compact package, hence incorporating all key elements with an impact on its scalability.

Despite its comprehensive nature, MicroK8s boasts distinguished features that enhance its scalability. Particularly, it employs Dqlite, a distributed database, as its main datastore. This competency empowers MicroK8s to track the steady surge of nodes and clusters without affecting performance.

In addition, MicroK8s has a clustering function that allows multiple instances to cooperate as a single entity. This aspect escalates its scalability potential by equally allocating tasks among different instances.

One can add a node to the MicroK8s cluster with the following command:

# On the specific node
microk8s join

Comparative Review of K3s and MicroK8s Scalability

Though both K3s and MicroK8s provide potent scalability options, their methodologies differ. K3s aims at efficient performance augmentation by excluding non-essential features, cutting down execution costs and improving speed. This focused strategy renders K3s highly adaptable, especially in resource-limited settings.

On the other hand, MicroK8s aims to supply a comprehensive suite of Kubernetes functionalities. This wide-ranging design sometimes risks scalability, but this can be mitigated through effective use of Dqlite and its clustering feature.

In closing, be it K3s or MicroK8s, either could be the right choice for scalable solutions depending on your unique requirements. K3s excels as a slim, effective solution, whereas MicroK8s shines for those seeking a comprehensive Kubernetes integration with a focus on scalable operations.

Real World Use Cases of K3s

Addressing Challenges in Peripheral Computing and IoT Networks

Implementing solutions for peripheral computing and Internet of Things (IoT) networks can often lead to complexities, especially when a lightweight and efficient solution is sought. K3s sits perfectly at the intersection of these needs with its streamlined structure ideal for scenarios constrained by resources.

Imagine an enterprise operating innumerable IoT devices distributed across different locations. K3s surfaces as the tool of choice for such situations, making it possible to handle these devices in cluster arrays, thus streamlining device management.

# K3s cluster configuration demonstration for IoT devices
curl -sfL | sh -

Advantages for Software Creators and Quality Assurance Specialists

For developers and testers, K3s serves as an effective environment that eliminates integration worries and minimizes setup requirements. When the need arises for a Kubernetes environment to check experimental solutions, K3s shines rudimentarily.

K3s offers developers a path to swiftly build a Kubernetes cluster, incorporate their software, and assess functions in an environment closely mirroring Kubernetes. This setup boosts product evolution while corroborating its performance within a Kubernetes setup.

# Demonstration of software integration within a K3s cluster
kubectl apply -f my-app.yaml

Deployment in Compact to Intermediate-sized Environments

While K3s isn't explicitly designed for extensive deployments, it reigns supreme in circumstances involving smaller to intermediate-range projects. Businesses constrained by resources or not requiring a full-fledged Kubernetes installation often favor K3s.

Smaller entrepreneurial entities wishing to manage a collection of programs within a Kubernetes cluster without adequate resources for a thoroughgoing Kubernetes installation might perceive K3s as cost-effective, resource-friendly alternative.

# Demonstration of K3s cluster creation for smaller-scale deployments
curl -sfL | sh -

Application in CI/CD Procedures

In the sphere of Continuous Integration/Continuous Delivery (CI/CD), K3s validates its worth. It impeccably collaborates with familiar CI/CD tools like Jenkins, GitLab, and CircleCI, smoothing the deployment voyage.

Leveraging K3s, developers can construct a pipeline facilitating automatic software insertion into a K3s cluster at the occurrence of code alternations. This procedure not only automates deployment but also ensures deployed software remains up-to-date.

# Exhibition of a GitLab CI/CD pipeline deploying K3s
  - broadcasting

  rank: broadcasting
    - curl -sfL | sh -
    - kubectl apply -f my-app.yaml

All in all, K3s showcases itself as a sleek interpretation of Kubernetes, harvesting considerable advantages in diverse operational settings. From governing IoT frameworks and establishing a conducive platform for developers, to piloting calculated deployments and strengthening automated updates within CI/CD procedures, K3s emerges as a model of efficacy and dependability.

Applications and Scenarios for MicroK8s

MicroK8s stands as a formidable tool, harnessing the significant capabilities of Kubernetes to fuel various applications. Let's delve into the unique functionalities of MicroK8s in different sectors:

Commanding the Internet of Things and Edge Computing Zones

MicroK8s shines brightly within the extensive fields of Internet of Things (IoT) and Edge computing. Its multifaceted functionality coupled with easy adoption gives it an edge over its competitors. It connects effortlessly with an array of hardware platforms, especially those crafted for IoT devices, thereby resolving many edge computing hurdles.

More specifically, it simplifies the management of an array of IoT systems placed across multiple sites. MicroK8s, in conjunction with Kubernetes, amasses these systems into a cohesive network. It simplifies the process of tracking and overseeing these devices.

Revolutionizing Continuous Integration and Delivery Phases

MicroK8s steps up the game in transforming Continuous Integration and Continuous Delivery (CI/CD) workflows. Its smooth interplay with Helm, a package manager for Kubernetes, propels MicroK8s' efficiency. Together, they assist programmers in designing, constructing, and refining complex Kubernetes applications, driving growth, boosting capabilities and keeping control. As a result, every phase of the coding process experiences an overhaul.

With MicroK8s managing code changes in real time, it ensures every incorporated modification easily integrates into the operational environment. This results in rapid development and minimizes possible future disruptions.

Facilitating Onsite App Development and Verification

MicroK8s is also a major player in refining and validating applications at a granular scale. It equips programmers with a user-friendly Kubernetes platform right at their fingertips. This boosts the development and testing of Kubernetes-compatible apps.

Using MicroK8s, coders can fire up a local Kubernetes node and execute thorough app checks and timely bug fixes.

Supervising Hybrid Cloud Links

When it comes to controlling hybrid cloud solutions, MicroK8s steals the limelight. It maintains an intricate interaction between regional and international cloud points. Its commendable performance across multi-cloud and hybrid cloud conditions enables tech enthusiasts to implement a setup aligned with their application requirements.

Consider a system guided by MicroK8s where a Kubernetes node bridges local data centers with giant cloud service platforms like Amazon Web Services or Google Cloud. This approach improves service speed and reach, while ensuring data sovereignty.

In conclusion, MicroK8s carries a worthwhile toolset for a variety of applications and instances. Whether it's developers seeking to secure the reliability of Kubernetes apps, IT specialists in pursuit of systematic IoT device control, or businesses shaping hybrid cloud systems; MicroK8s delivers. It's extensive services underline its repute as a robust alternative worth serious consideration.

Choosing the Right One: K3s vs MicroK8s

Exploring the distinctions and practical applications of K3s and MicroK8s necessitates a comprehensive analysis of each platform's unique architecture, objectives, and area of usage. While both K3s and MicroK8s operate on the basic tenets of Kubernetes distributions, their distinct features set them apart despite their shared attributes of lightness and simple control capabilities.

Identify Your Objectives

To effectively assess K3s and MicroK8s, you must first determine your own unique requisites clearly. For instance, you may desire a tool that ensures seamless installation and upkeep. Or, it could be that you need a Kubernetes variation that meshes well with a range of hardware devices like IoT appliances, antiquated servers, or even obsolete gadgets. Perhaps your focus is on a potent solution tailored for scenarios where resources are at a premium. Therefore, your decision to opt for either K3s or MicroK8s will be steered by the set of demands you deem paramount.

Setup & Control

K3s and MicroK8s both aim to alleviate the often complex task of setup and control. However, K3s has a slight advantage, providing a hassle-free, single-binary installation method. Conversely, MicroK8s mandatorily requires a snap for rollout, which may not be feasible or even possible in certain situations.

Device Interoperability

K3s excels in its wide-ranging compatibility with device structures, supporting IoT devices, edge servers, and outmoded hardware. In contrast, MicroK8s, acclaimed for its minimalistic and condensed nature, targets mainly developers and smaller cluster contexts.

Resource Utilization

Considering tight resource settings, both K3s and MicroK8s have been engineered to be mindful of resource utilization. However, K3s exhibits further precision by jettisoning some non-core components, thereby minimizing its resource needs. Despite MicroK8s' focus on efficiency, its array of built-in features slightly amplifies resource uptake.

Feature Assessment

If the criterion is the count of inbuilt features, MicroK8s is a worthy contestant. Equipped with integrated features like Istio, Knative, Grafana, and Prometheus, MicroK8s holds significant benefits. In contrast, K3s adjoins a minimalist approach, resulting in an optimized and productive configuration.

Development Patrons and Community Interaction

Concerning communal support and endorsements, both K3s and MicroK8s emerge as winners. K3s owes its support to Rancher Labs, renowned for their involvement and contributions to the Kubernetes ecosystem. Concurrently, MicroK8s is under the patronage of the influential Canonical, the parent company of Ubuntu. Both offer substantial documentation and active community support, which prove advantageous for users.

In closing, though K3s and MicroK8s both flaunt distinct capabilities within the sphere of lightweight Kubernetes variants, the ultimate selection hinges on the user's preferences and requirements. If you place a premium on a light-weight Kubernetes variant with effortless setup and control, K3s could fulfill your needs. Conversely, if your preference leans towards a feature-loaded Kubernetes distribution capable of handling slightly higher resource demands, MicroK8s would be your go-to choice.

Final Verdict: K3s or MicroK8s – Which Reigns Supreme?

In the fierce competitive world of small-scale and refined Kubernetes versions, K3s and MicroK8s have etched a distinct identity for themselves. These versions, a testament to ingenious programming mastery, embody minimalism, practicality, and potency that makes them simply unmatched for deployment within the framework of edge computing, complex internet structures, and compact production orchestrations. Regardless, to declare a definitive winner, a deep-dived analysis is warranted.

Efficiency and Resource Management

Both K3s and MicroK8s showcase exceptional delivery in terms of operational efficiency. Nevertheless, the compact architecture and the small binary footprint of K3s positions it slightly ahead of the competition. With its ability to function optimally in demanding environments with resource limitations, K3s becomes the apt pick for situations with scarce resources.

However, in the battlefield of resource governance, MicroK8s has a definitive edge. Fully-armed with integrated service and ingress controllers, it expertly handles complex infrastructural scenarios.

Administration of Extensions and Extra Features

MicroK8s scores higher than K3s when it comes to managing extensions and tangential features. An ensemble of supplementary components at its disposal allows users to activate or deactivate them without breaking a sweat using a singular command, making it a desirable choice for users seeking specialised proficiency.

Contrastingly, the route taken by K3s towards extensions is less intricate yet more purposeful. With lesser room for personal customization, K3s romps home with a set of preconfigured offers like Traefik as an ingress facilitator and a proprietary storage provider, matching specific operational requirements.

Expansion Potential

When deciding between K3s and MicroK8s, scalability of a Kubernetes version emerges as a crucial factor. Both contenders demonstrate potent capabilities in this sphere.

The lean structure and unruffled cluster management of K3s support rapid and fruitful scalation. Alongside, K3s supporting multi-master configurations improves the dependability and availability of applications.

In contrast, MicroK8s provides intrinsic support for high-resiliency clustering. The inclusion of Kubernetes Dashboard and Metrics Server offers priceless insights about cluster operations aiding your decision-making process for expansion plans.

Community and Technical Backing

Both K3s and MicroK8s are backed by robust community support and cultivated by industry-leading organizations. K3s owes its heritage to the reputed Rancher Labs, while MicroK8s is spawned by Canonical, the brainiacs behind Ubuntu.

Though their repositories are replete with in-depth documentation and active user forums, MicroK8s has a marginal advantage owing to Canonical's time-honoured reputation and a broader user community.

Practical Uses

K3s and MicroK8s excel in real-life deployments. Thanks to K3s's condensed construction, it aligns impeccably with edge computing, integrated device models, and continuous integration/continuous delivery workflows.

At the same time, the formidable feature arsenal and adaptability of MicroK8s pledges its rightful position among software developers and compact production orchestrations. The user-friendly interaction model and well-structured guidebooks make it a fantastic learning platform for Kubernetes novices.

Closing Statement

To wrap it up, both K3s and MicroK8s are trusted choices for compact and featherweight Kubernetes versions, each catering to distinct requirements. If one aims for a hassle-free setup and economical operations, K3s fits the bill. Conversely, if extensive control over optional attributes and scalability objectives are the prime considerations, MicroK8s rightly fits the slot.

Your choice of the fitting Kubernetes version rests entirely on your specific requirement and planned use. Both K3s and MicroK8s have their unique strengths and could be just the right fit for differently flavoured circumstances.

Further Reading: Expanding Your Knowledge on K3s and MicroK8s

If you're keen to expand your technical prowess with K3s and MicroK8s, you're in luck - the internet is brimming with an array of diverse digital material that will bolster your knowledge. In this section, you'll discover a curated list of top-notch web-based references ranging from in-depth documentation, dynamic tutorials, interactive community platforms, to even traditional text sources.

Comprehensive Documentation

Delving into formal written guides is a foolproof starting point to grasp any technological concept. K3s and MicroK8s are no exceptions, boasting robust, well-organised documents that encompass everything from the basic setup to sophisticated features.

  1. K3s Documentation: Rancher Labs leads the way in sustaining an encyclopaedic K3s guide. This exhaustive resource comprehensively discusses all elements of K3s, such as system installation, customization, and cluster orchestration. What's more, this dynamic document is routinely refreshed with fresh technological insights and presents simple, gradual guidelines for mastering K3s.
  2. MicroK8s Documentation: Canonical matches up with an equally detailed MicroK8s guidebook. This includes a granular walkthrough on the deployment and utilization of MicroK8s, as well as an exploration of its exclusive functionalities and extensions. Plus, it houses a handy FAQ segment that resolves typical queries and conundrums.

Interactive Learning: Tutorials and Courses

Making the most of online lessons and programs unearths an engaging educational method to comprehend K3s and MicroK8s. These platforms offer practical hand-ons tasks that put theoretical knowledge into action.

  1. K3s Tutorials: The virtual sphere is teeming with helpful K3s tutorials. One such example is the tutorial series hosted by Rancher Labs, exploring diverse aspects of K3s, spanning from system deployment to cluster supervision.
  2. MicroK8s Courses: Similarly, various e-learning courses give users a 360-degree understanding of MicroK8s. A standout is Udemy's "Mastering MicroK8s" course, which dissects the underpinnings, functions, and practical applications of the technology.

Peer Insights: Community Forums and Blogs

Gleaning insights from peer experiences via community domains and blogs is an uncharted treasure trove. These spaces foster knowledge sharing, question and answer exchanges, and the unfoldment of best-used tactics.

  1. K3s Community: GitHub’s K3s community is brimming with engaged and supportive members. Here, you can probe into diverse topics, report glitches, and potentially add to the K3s project.
  2. MicroK8s Community: Hosted on the Canonical website, the MicroK8s community is equally vibrant. It's a hub of enlightenment where you can raise inquiries, contribute your learning, and glean knowledge from others' experiences.

Book Wisdom

For those preferring sequential, detailed learning, books offer a meticulously organised learning platform.

  1. K3s Books: As of now, no texts exclusively devoted to K3s exist, but numerous Kubernetes books incorporate chapters on K3s such as "Mastering Kubernetes" penned by Gigi Sayfan.
  2. MicroK8s Books: Like K3s, no books concentrating solely on MicroK8s exist. However, several Kubernetes books delve into it, including "Kubernetes Up & Running" authored by Kelsey Hightower.

To sum up, there is a wealth of digital and print material ready to propel your understanding of K3s and MicroK8s to new heights. From manuals, interactive tutorials, forums, to time-tested books, there's a wealth of information to suit everyone's learning preference. Here's to your knowledge enrichment adventure!


Subscribe for the latest news

Learning Objectives
Subscribe for
the latest news
Related Topics
